Donaldson P761490 Replaces the Linde 0009839444

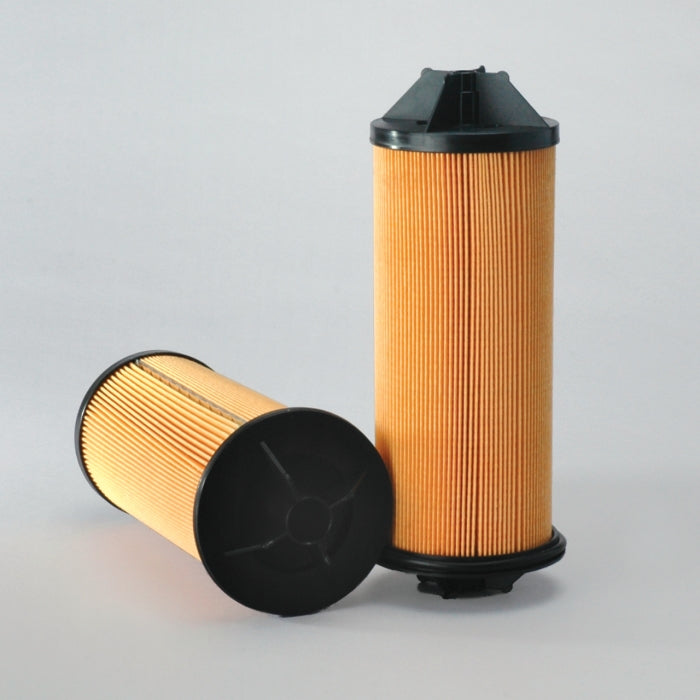

Donaldson P761490
Donaldson P761490
Watch video
▶
Representative product image Product image feedback

Donaldson P761490 Hydraulic Filter, Cartridge | Replaces the Linde 0009839444

Brand: Donaldson
Description

Genuine Donaldson P761490 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
$92.00
0.5 kg
0.0058 m³
162 pcs
Italy
8421.29.80.90
0.62 kg
0.0045 m³
162 pcs
France
8421.99.90
0.61 kg
0.0033 m³
162 pcs
Italy
8421.99.90
Shipping Terms

Description

Genuine Donaldson P761490 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleSpecial Filter
MediaCellulose
Efficiency 125µ @ β2
Outer Diameter 109.0 mm
Inner Diameter 19.0 mm
Length 277.5 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Linde 0009839444

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Special Filter
Outer Diameter 109.0 mm
Inner Diameter 19.0 mm
Length 277.5 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
