Summary

MicroFit MFHLP31695 Replaces the Hydac 01253018

01253018
01253018
Representative product image Product image feedback

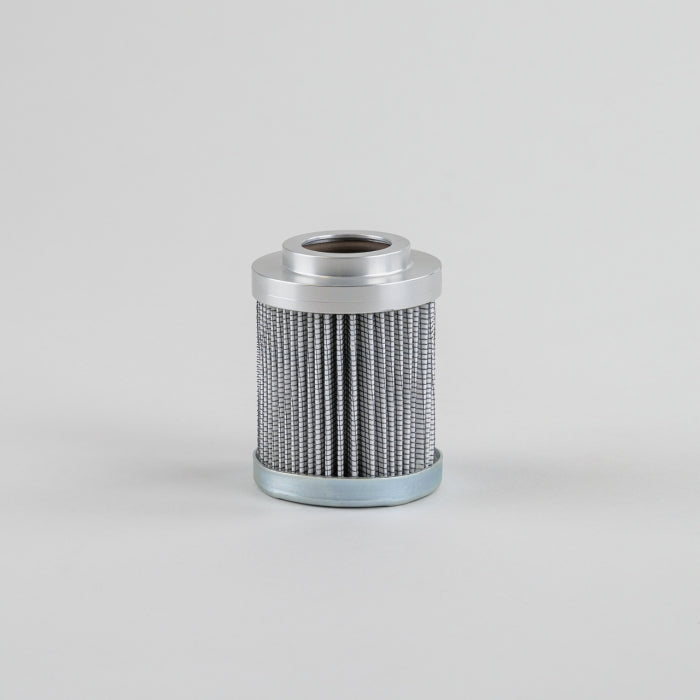

MicroFit® UltraGen III MFHLP31695 Pressure Filter | Replaces the Hydac 01253018

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31695 is the MICROFIT® approved replacement to the Hydac 01253018. Engineered and manufactured in Great Britain the MFHLP31695 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Price Match
$49.00
0.34 kg
0.0002 m³
United Kingdom
8421.99.90
0.16 kg
0.0002 m³
Italy
8421.99.90
0.17 kg
0.0013 m³
United States
8421.29.80.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31695 is the MICROFIT® approved replacement to the Hydac 01253018. Engineered and manufactured in Great Britain the MFHLP31695 is designed to meet or exceed the quality and performance of OEM quality standards, ensuring superior filtration performance and the longest possible filter life.

Building on over 50 years of filtration expertise, the UltraGen III series is the third generation of MICROFIT® filter media, delivering exceptional efficiency and reliability.

FilterFinder is an approved distributor of MICROFIT® filters. With expert product knowledge, dedicated support, and a large stock availability, FilterFinder ensures you receive the parts you need when you need them, every time.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 56.3 mm
Inner Diameter 25.5 mm
Length 72.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 01253018

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 56.3 mm
Inner Diameter 25.5 mm
Length 72.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Viton
Temperature Range -25 - +120°C
