Hydac 0160 DN 010 BN4HC Replaces the Hydac 0160 DN 010 BNHC

0160 DN 010 BNHC
0160 DN 010 BNHC
Representative product image Product image feedback

Hydac 0160 DN 010 BN4HC DIN Pressure Filter | Replaces the Hydac 0160 DN 010 BNHC

Brand: Hydac
Description

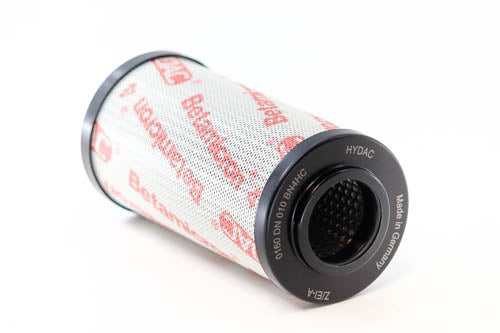

Genuine Hydac 0160 DN 010 BN4HC DIN Pressure Filter.

Built to HYDAC’s OEM specifications and quality standards, this genuine part offers reliable performance, long service life and a precise fit. It’s suitable for a wide range of hydraulic and process applications, helping protect equipment, reduce downtime and maintain system cleanliness. For best results, match the part code to your equipment manual and verify key dimensions and ratings (size, connection, filtration grade/flow) before installation.

Price Match
$286.00
6 pcs
Germany
8421.99.90
1.06 kg
0.001 m³
6 pcs
United Kingdom
8421.99.90
0.52 kg
0.0012 m³
6 pcs
France
8421.99.90
0.48 kg
0.001 m³
6 pcs
Italy
8421.99.90
0.5 kg
0.0021 m³
6 pcs
United States
8421.29.80.90
Shipping Terms

Description

Genuine Hydac 0160 DN 010 BN4HC DIN Pressure Filter.

Built to HYDAC’s OEM specifications and quality standards, this genuine part offers reliable performance, long service life and a precise fit. It’s suitable for a wide range of hydraulic and process applications, helping protect equipment, reduce downtime and maintain system cleanliness. For best results, match the part code to your equipment manual and verify key dimensions and ratings (size, connection, filtration grade/flow) before installation.

Specification

StyleDIN Pressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 157.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Hydac Brand Logo

Hydac Product

Genuine Hydac 0160 DN 010 BN4HC

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style DIN Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 40.5 mm
Length 157.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
