MicroFit MFHHP40800 Replaces the Internormen 01E36040GHREV

MICROFIT MFHHP40800
MICROFIT MFHHP40800

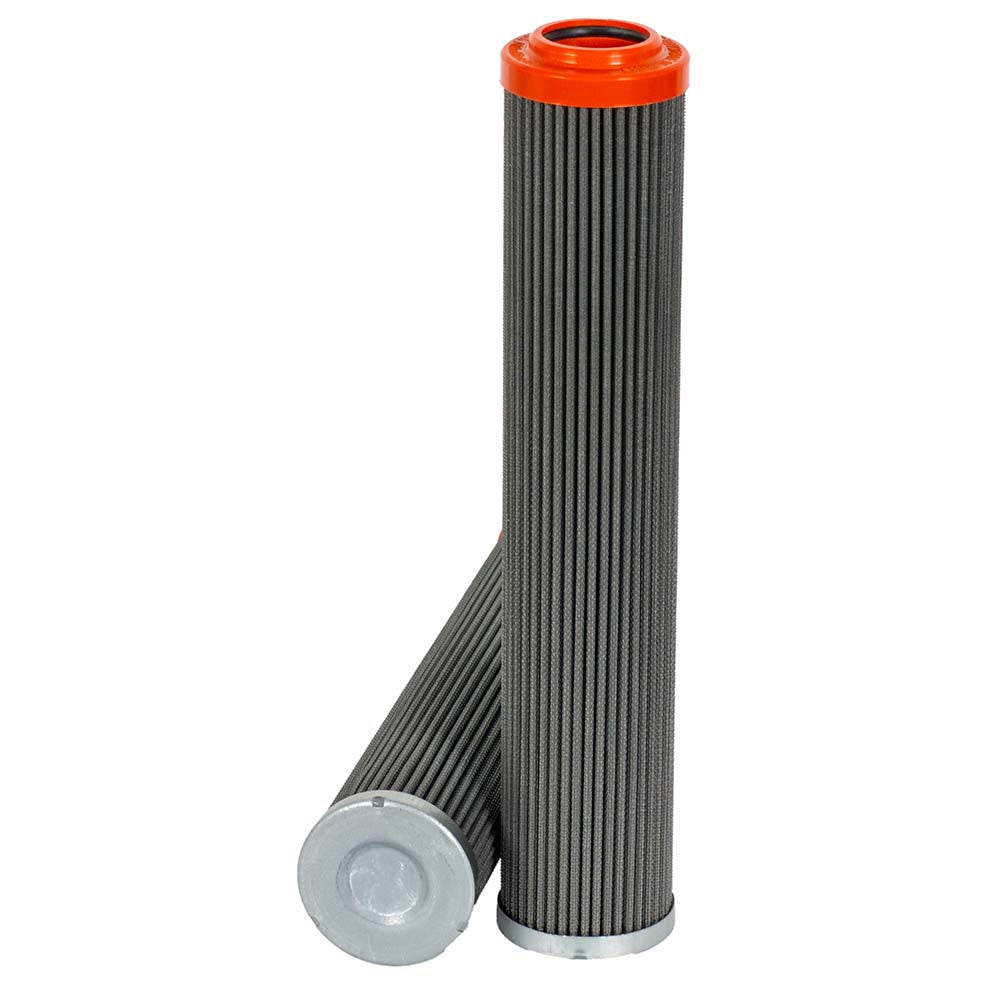

Representative product image Product image feedback

MicroFit® UltraGen III MFHHP40800 Pressure Filter | Replaces the Internormen 01E36040GHREV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40800 is the MICROFIT® approved replacement to the Internormen 01E36040GHREV. Engineered and manufactured in Great Britain the MFHHP40800

Price Match
$360.00
2.43 kg
0.0011 m³
United Kingdom
8421.99.90
1.11 kg
0.0011 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40800 is the MICROFIT® approved replacement to the Internormen 01E36040GHREV. Engineered and manufactured in Great Britain the MFHHP40800

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 140µ
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 310.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Internormen Brand Logo

Same Fit-Form & Function

As the Genuine Internormen 01E36040GHREV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
40µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 310.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
