Donaldson P959080 Replaces the JCB 332/V8853

Donaldson P959080
Donaldson P959080
Watch video
▶
Representative product image Product image feedback

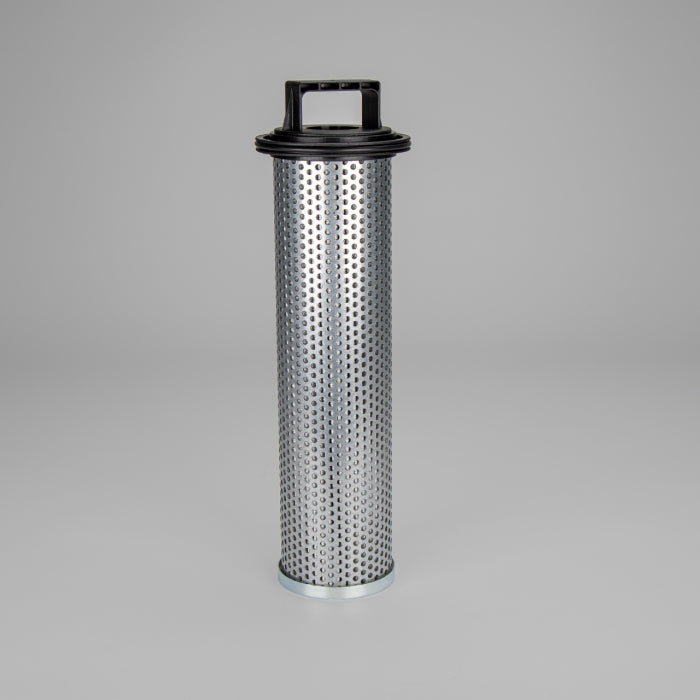

Donaldson P959080 Hydraulic Filter, Strainer | Replaces the JCB 332/V8853

Brand: Donaldson
Description

Genuine Donaldson P959080 Hydraulic Filter, Strainer is designed to capture larger contaminants before they enter the hydraulic system, protecting sensitive components from damage. Its coarse filtration capability helps extend the life of downstream filters and improves overall system performance.

Ideal for low-pressure applications, this strainer offers durable construction and easy installation. It’s a cost-effective solution for maintaining hydraulic fluid cleanliness and preventing clogging in pumps and valves.

Price Match
$77.00
0.53 kg
0.0027 m³
Italy
8421.29.80.90
Italy
8421.99.90
0.44 kg
0.0022 m³
France
8421.99.90
0.27 kg
0.0017 m³
Italy
8421.99.90
0.59 kg
United Kingdom
8421.99.90
Shipping Terms

Description

Genuine Donaldson P959080 Hydraulic Filter, Strainer is designed to capture larger contaminants before they enter the hydraulic system, protecting sensitive components from damage. Its coarse filtration capability helps extend the life of downstream filters and improves overall system performance.

Ideal for low-pressure applications, this strainer offers durable construction and easy installation. It’s a cost-effective solution for maintaining hydraulic fluid cleanliness and preventing clogging in pumps and valves.

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 115µ @ β200
Efficiency 217µ @ β1000
Outer Diameter 79.0 mm
Inner Diameter 62.6 mm
Length 269.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine JCB 332/V8853

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
15µ @ β200
Efficiency 2 17µ @ β1000
Style Special Filter
Outer Diameter 79.0 mm
Inner Diameter 62.6 mm
Length 269.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
