Summary

MP Filtri HP1352A10AN Alternative to the MP Filtri 8HP1352A10NA

8HP1352A10NA
8HP1352A10NA
ZEZIONE FILTRO4

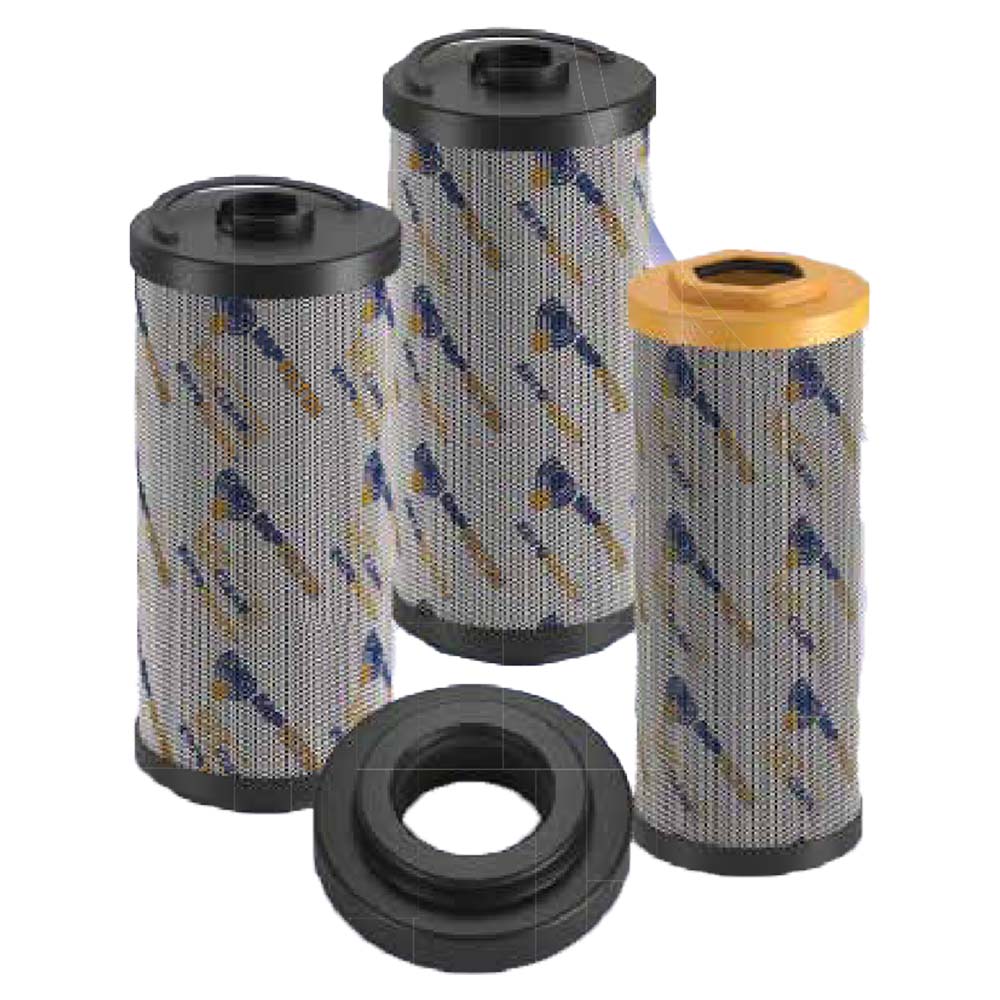

Representative product image Product image feedback

MP Filtri HP1352A10AN | Alternative to the MP Filtri 8HP1352A10NA

Brand: MP Filtri
Price Match
$165.00
0.0007 m³
Italy
8421.99.90
0.42 kg
0.0007 m³
France
8421.99.90
0.88 kg
0.0007 m³
United Kingdom
8421.99.90
0.19 kg
0.0007 m³
Italy
8421.99.90
0.0007 m³
8421.99.90
0.27 kg
0.0011 m³
8421.29.80.90
0.43 kg
0.0008 m³
8421.23.00
Shipping Terms

Description

Original MP Filtri HP1352A10AN replacement filter.

MP Filtri evaluates each new product design through accurate laboratory tests which combine both technology & efficiency ensuring innovation is a priority of the design process. MP Filtri supplies a wide range of products for all hydraulic & lubrication mobile & industrial applications using filters, elements & accessories as well as bell housing and drive couplings for power transmission systems. As a total solution provider, MP Filtri completes the range with contamination monitoring products and mobile filtration units suitable for various fluid applications

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 53.0 mm
Inner Diameter 27.5 mm
Length 230.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C

Description

Original MP Filtri HP1352A10AN replacement filter.

MP Filtri evaluates each new product design through accurate laboratory tests which combine both technology & efficiency ensuring innovation is a priority of the design process. MP Filtri supplies a wide range of products for all hydraulic & lubrication mobile & industrial applications using filters, elements & accessories as well as bell housing and drive couplings for power transmission systems. As a total solution provider, MP Filtri completes the range with contamination monitoring products and mobile filtration units suitable for various fluid applications

MP Filtri Product

Genuine MP Filtri HP1352A10AN

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year MP Filtri Warranty

MP Filtri Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 53.0 mm
Inner Diameter 27.5 mm
Length 230.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Nitrile
Temperature Range -30 - +100°C
