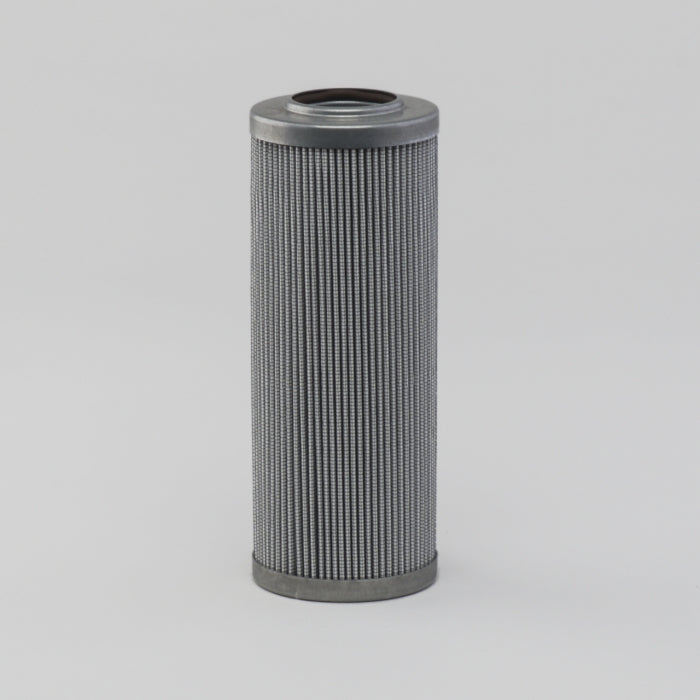

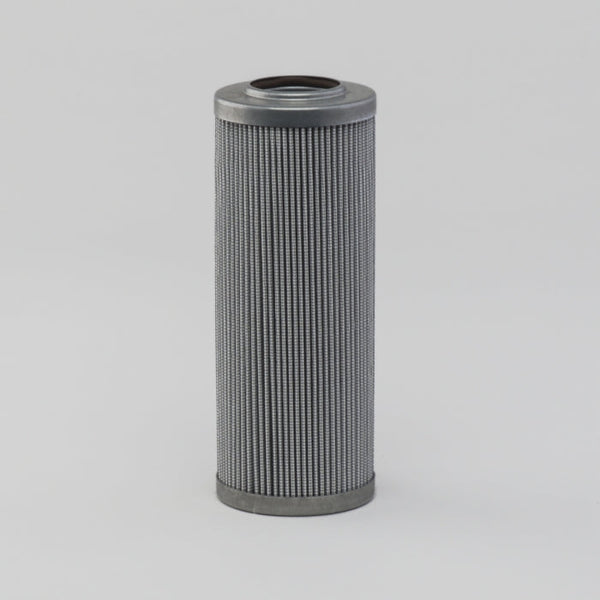

Donaldson P566212 Hydraulic Filter, Cartridge Dt | Replaces the Parker 932655Q

Brand: Donaldson
Description

Genuine Donaldson P566212 Hydraulic Filter, Cartridge Dt is engineered with advanced depth filtration technology, offering enhanced dirt retention and fluid cleanliness. It ensures optimal performance in high-pressure hydraulic systems, effectively protecting critical components from wear and extending system life.

This filters robust construction and superior filtration efficiency make it ideal for demanding applications. Its reliable performance helps minimize maintenance costs and system downtime, ensuring consistent operation under tough conditions.

Price Match
$83.00
0.53 kg
0.0022 m³
352 pcs
United States
8421.29.80.90
1.32 kg
0.0013 m³
352 pcs
United Kingdom
8421.99.90
0.63 kg
0.0028 m³
352 pcs
France
8421.99.90
0.61 kg
0.0013 m³
352 pcs
Italy
8421.99.90
352 pcs
United States
8421.99.90
Shipping Terms

Description

Genuine Donaldson P566212 Hydraulic Filter, Cartridge Dt is engineered with advanced depth filtration technology, offering enhanced dirt retention and fluid cleanliness. It ensures optimal performance in high-pressure hydraulic systems, effectively protecting critical components from wear and extending system life.

This filters robust construction and superior filtration efficiency make it ideal for demanding applications. Its reliable performance helps minimize maintenance costs and system downtime, ensuring consistent operation under tough conditions.

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 209.0 mm
Δ Collapse Pressure 21 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker 932655Q

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 78.0 mm
Inner Diameter 43.2 mm
Length 209.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 21 BAR
Seal Viton
Temperature Range -25 - +120°C
