MicroFit MFHR56919 Replaces the Parker 943952Q

MICROFIT MFHR56919
MICROFIT MFHR56919
Representative product image Product image feedback

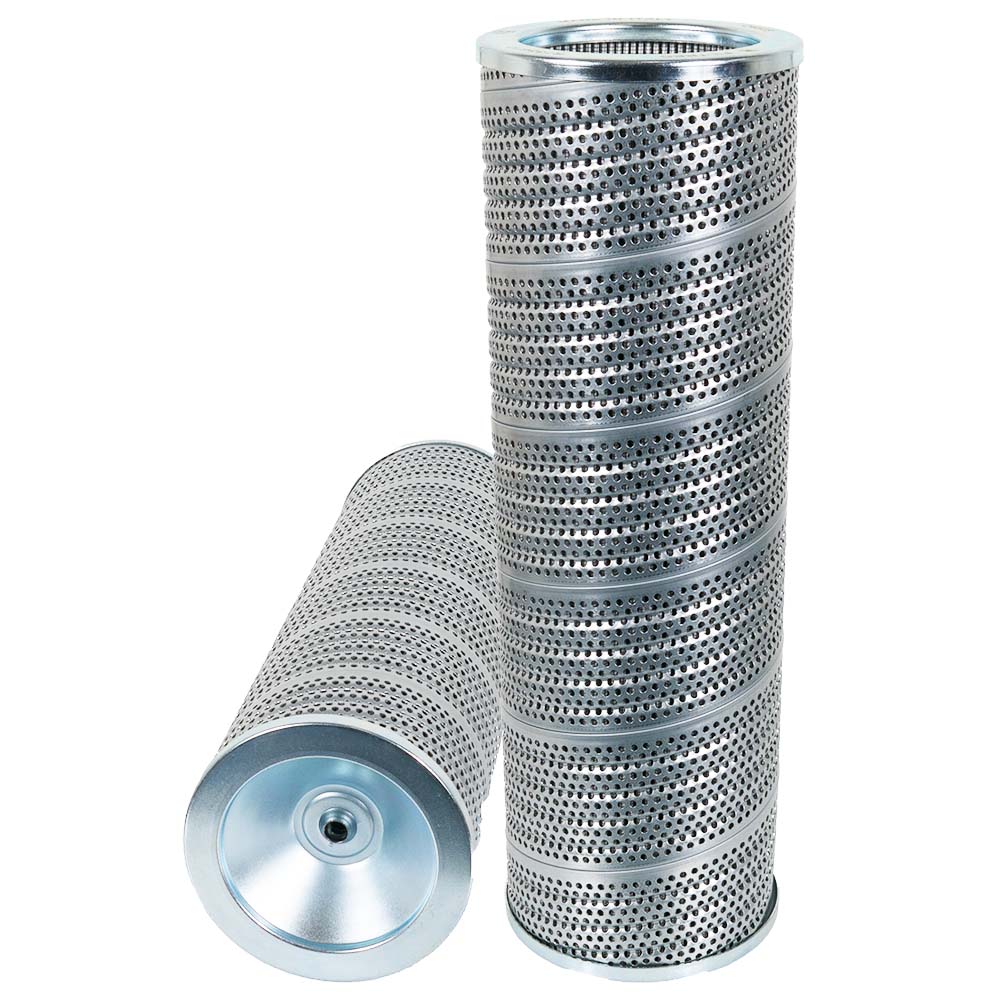

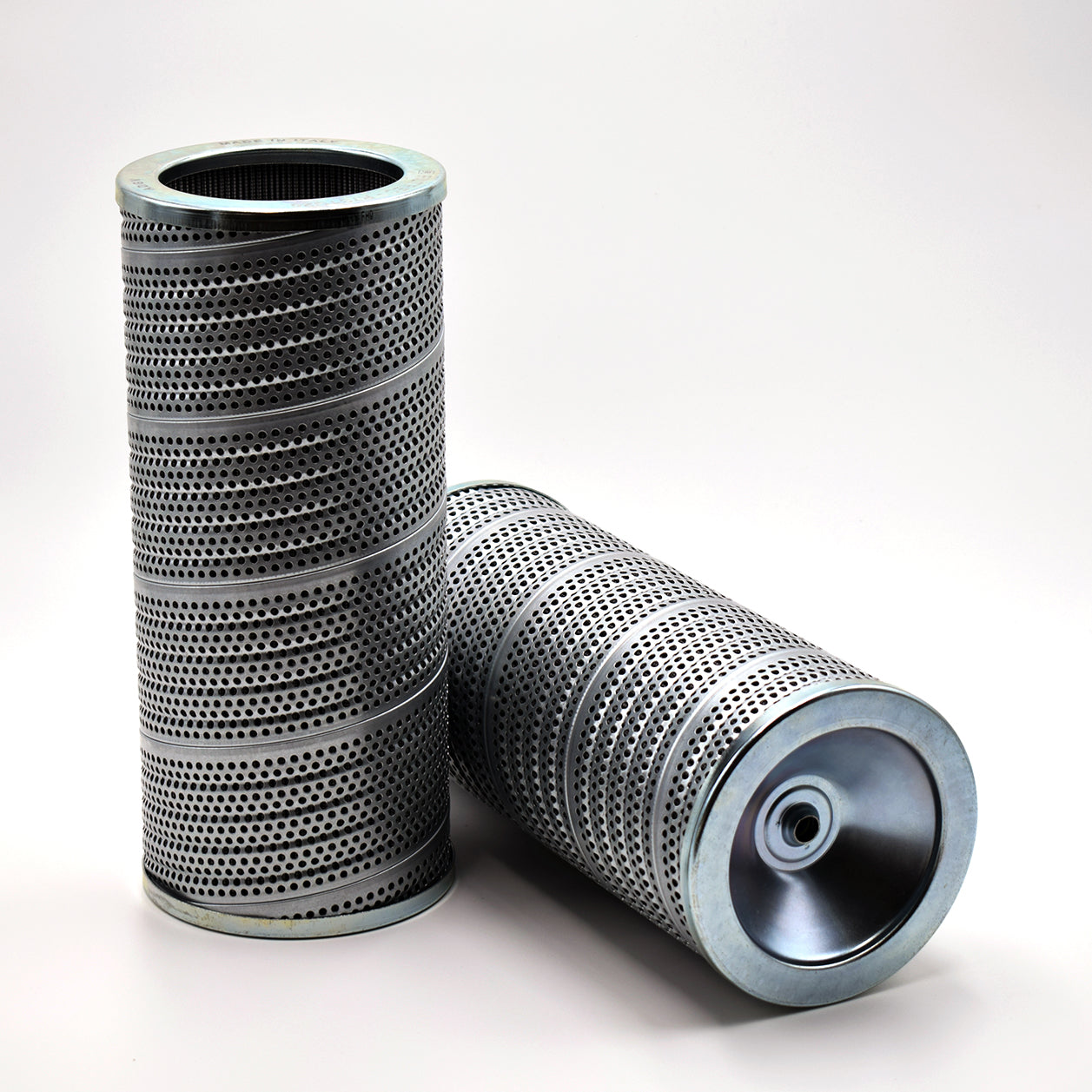

MicroFit® UltraGen III MFHR56919 Return Filter | Replaces the Parker 943952Q

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR56919 is the MICROFIT® approved replacement to the Parker 943952Q. Engineered and manufactured in Great Britain the MFHR56919

Price Match
$135.00
5.28 kg
0.0062 m³
United Kingdom
8421.99.90
2.4 kg
0.0062 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56919 is the MICROFIT® approved replacement to the Parker 943952Q. Engineered and manufactured in Great Britain the MFHR56919

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 126.0 mm
Inner Diameter 92.0 mm
Length 390.0 mm
Seal MaterialViton
Temperature Range -25 - +120°C
Parker Brand Logo

Same Fit-Form & Function

As the Genuine Parker 943952Q

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Return Filter
Outer Diameter 126.0 mm
Inner Diameter 92.0 mm
Length 390.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -25 - +120°C
