MicroFit MFHHP40049 Replaces the Fai Filtri CF9811A25HV

CF9811A25HV
CF9811A25HV
Representative product image Product image feedback

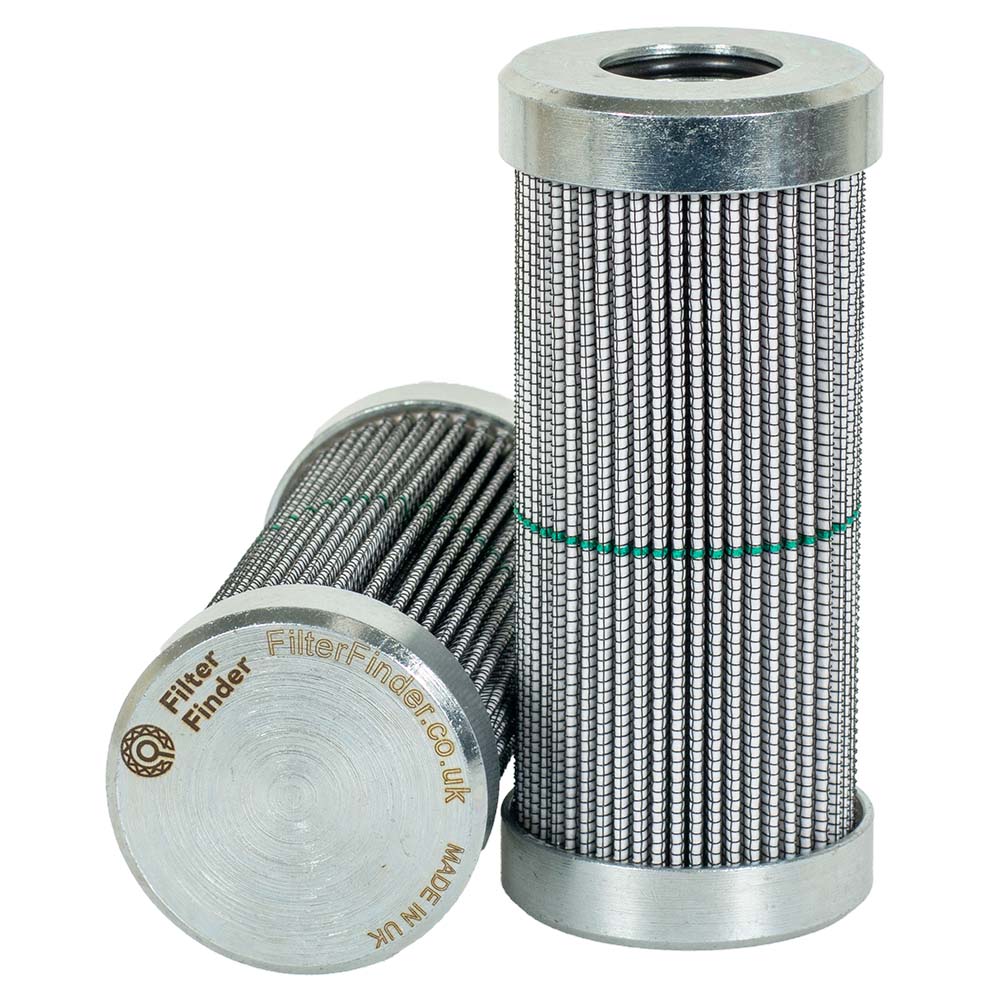

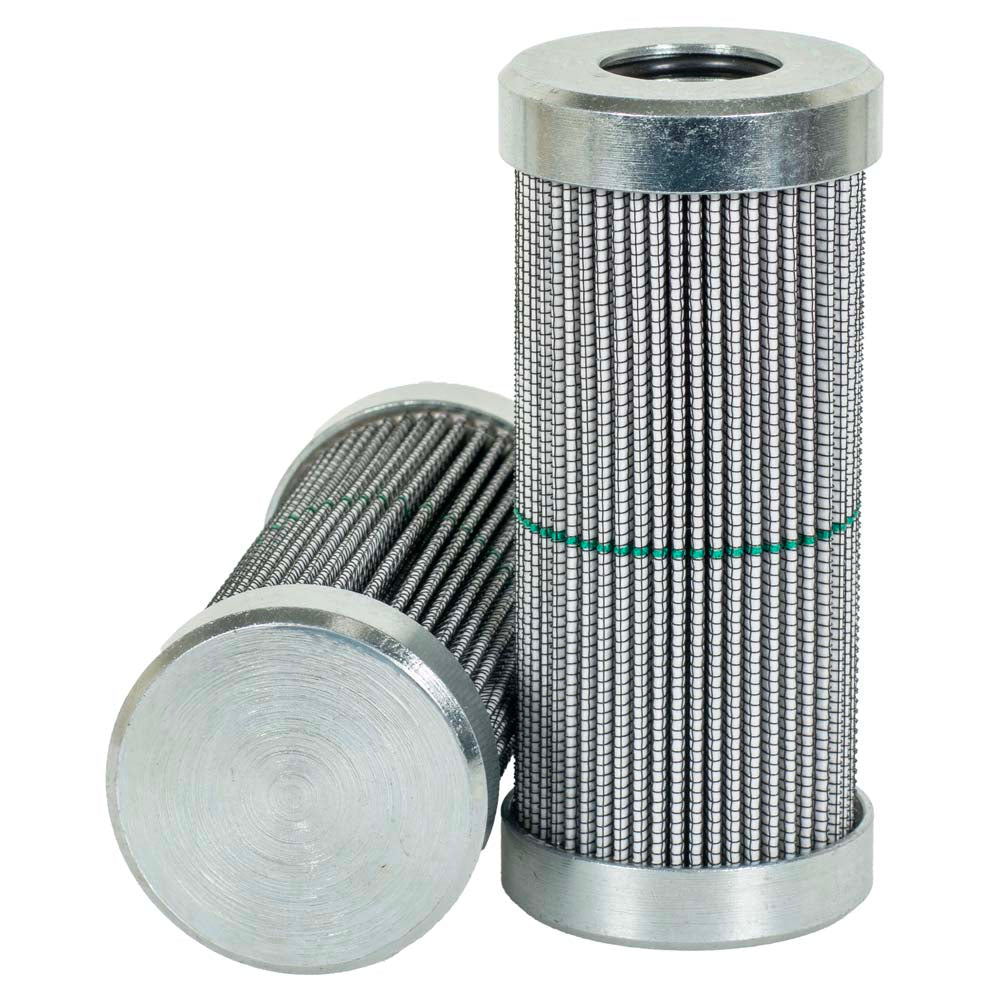

MicroFit® UltraGen III MFHHP40049 Pressure Filter | Replaces the Fai Filtri CF9811A25HV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP40049 is the MICROFIT® approved replacement to the Fai Filtri CF9811A25HV. Engineered and manufactured in Great Britain the MFHHP40049

Price Match
$123.00
0.49 kg
0.0003 m³
United Kingdom
8421.99.90
0.4 kg
0.0005 m³
France
8421.99.90
0.1 kg
0.0003 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP40049 is the MICROFIT® approved replacement to the Fai Filtri CF9811A25HV. Engineered and manufactured in Great Britain the MFHHP40049

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 114.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Fai Filtri CF9811A25HV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Pressure Filter
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 114.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
