Fleetguard HF35313 Replaces the Hengst E96H

E96H
E96H
Representative product image Product image feedback

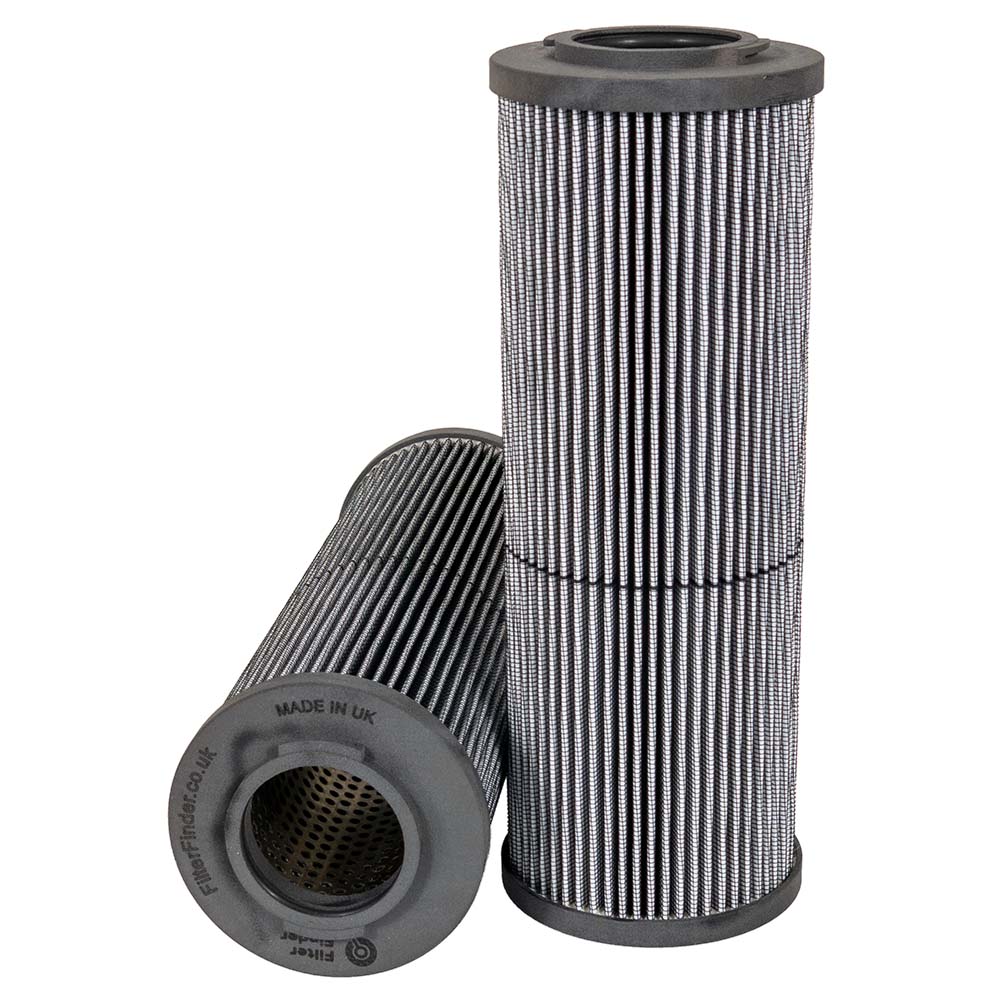

Fleetguard HF35313 Hydraulic Filters | Replaces the Hengst E96H

Brand: Fleetguard
Description

Fleetguard® HF35313 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$52.00
0.4 kg
0.0013 m³
Italy
8421.23.00
Germany
8421.99.90
0.35 kg
0.0008 m³
Italy
8421.99.90
0.34 kg
0.0015 m³
France
8421.99.90
0.35 kg
United Kingdom
8421.99.90
Shipping Terms

Description

Fleetguard® HF35313 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSpecial Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 61.5 mm
Inner Diameter 28.5 mm
Length 200.0 mm
Bypass Pressure 1.5 BAR bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Hengst Brand Logo

Same Fit-Form & Function

As the Genuine Hengst E96H

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Special Filter
Outer Diameter 61.5 mm
Inner Diameter 28.5 mm
Length 200.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.5 BAR
Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
