MicroFit MFHR50809 Replaces the UFI Filter ERF32NFB

MICROFIT MFHR50809
MICROFIT MFHR50809
Representative product image Product image feedback

MicroFit® UltraGen III MFHR50809 Return Filter | Replaces the UFI Filter ERF32NFB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR50809 is the MICROFIT® approved replacement to the UFI ERF32NFB. Engineered and manufactured in Great Britain the MFHR50809

Price Match
$81.00
2.65 kg
0.0046 m³
120 pcs
United Kingdom
8421.99.90
1.54 kg
0.0063 m³
120 pcs
Italy
8421.29.80.90
1.2 kg
0.0046 m³
120 pcs
Italy
8421.99.90
120 pcs
Germany
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50809 is the MICROFIT® approved replacement to the UFI ERF32NFB. Engineered and manufactured in Great Britain the MFHR50809

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000

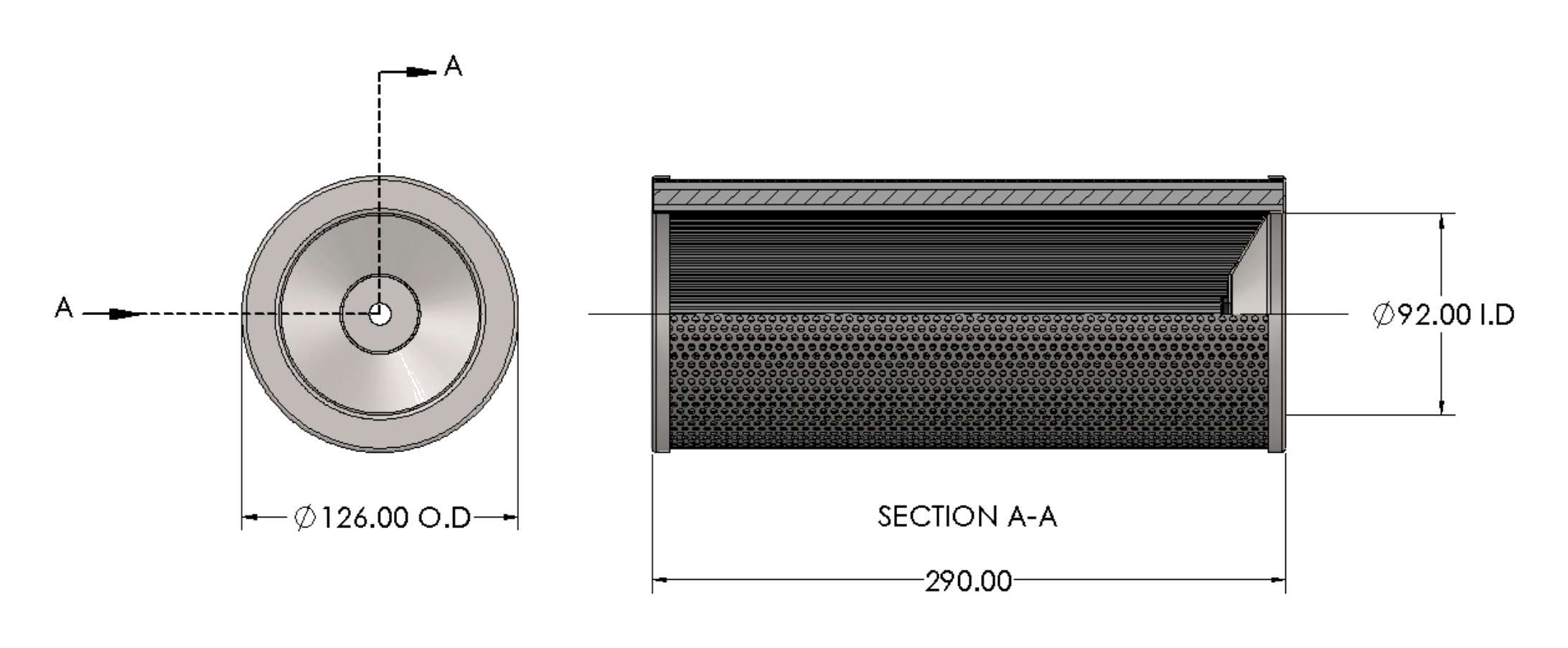

Outer Diameter 126.0 mm
Inner Diameter 92.0 mm
Length 290.0 mm
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine UFI Filter ERF32NFB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Return Filter
Outer Diameter 126.0 mm
Inner Diameter 92.0 mm
Length 290.0 mm
Media Type Glass Fiber
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Nitrile
Temperature Range -30 - +100°C
