Donaldson P171534 Replaces the MP Filtri F1025

Donaldson P171534
Donaldson P171534
Watch video
▶
Representative product image Product image feedback

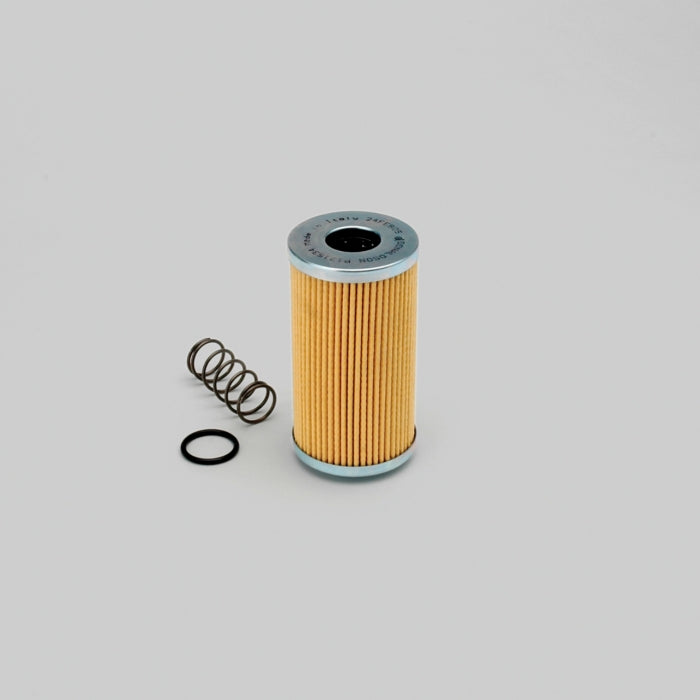

Donaldson P171534 Hydraulic Filter, Cartridge | Replaces the MP Filtri F1025

Brand: Donaldson
Description

Genuine Donaldson P171534 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
$17.00
0.29 kg
0.001 m³
700 pcs
Italy
8421.29.80.90
0.22 kg
0.0006 m³
700 pcs
Italy
8421.99.90
0.22 kg
0.0012 m³
700 pcs
France
8421.99.90
0.29 kg
0.0011 m³
700 pcs
Italy
8421.23.00
Shipping Terms

Description

Genuine Donaldson P171534 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
MediaCellulose
Efficiency 125µ @ β2
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 127.0 mm
Bypass Pressure 1.7 BAR bar
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
MP Filtri Brand Logo

Same Fit-Form & Function

As the Genuine MP Filtri F1025

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
25µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 70.0 mm
Inner Diameter 29.5 mm
Length 127.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

1.7 BAR
Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
