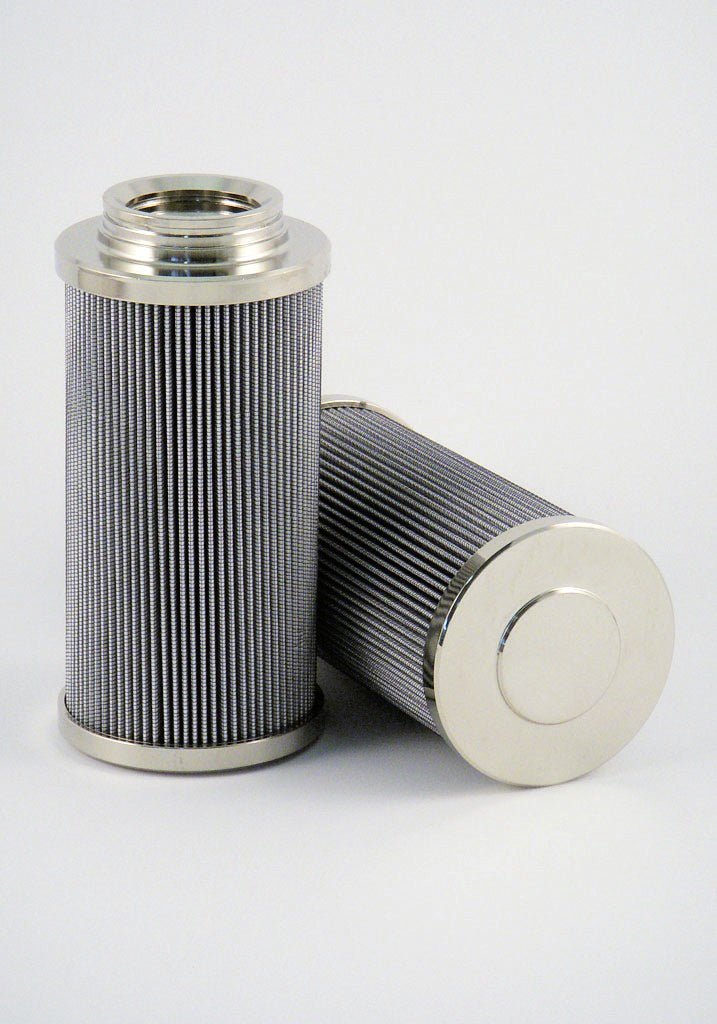

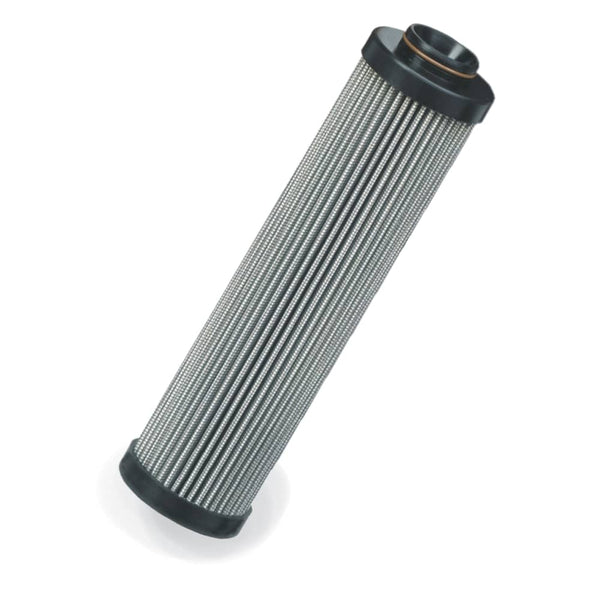

Parker G03740Q Replacement Pressure Filter
Parker G03740Q Pressure Filter
G03740Q
Parker
Parker
Brand:
Parker
Description
Replacement Elements - 22PD-32PD Series (G03740Q)
Parker 22PD/32PD Series High Pressure Duplex Filters utilise a duplex design containing a changeover valve with integrated balancing valve and vent ports. This design offers continuous operation during element change.
High quality Glassfibre filtration media is applied in the replacement elements as standard.
Beside the normal elements, also High Strength (high collapse pressure) elements are available for situations where high differential pressure over the element can occur, for example when no bypass pressure valve is mounted.
Regular price
$2,071.00
Unit price
per
United States
8421.99.90
2.98 kg
0.003 m³
Italy
8421.99.90
2.98 kg
United Kingdom
8421.99.90
Description
Replacement Elements - 22PD-32PD Series (G03740Q)Parker 22PD/32PD Series High Pressure Duplex Filters utilise a duplex design containing a changeover valve with integrated balancing valve and vent ports. This design offers continuous operation during element change.
High quality Glassfibre filtration media is applied in the replacement elements as standard.
Beside the normal elements, also High Strength (high collapse pressure) elements are available for situations where high differential pressure over the element can occur, for example when no bypass pressure valve is mounted.
Specification
| Style | Pressure Filter |
| Media | Glass Fiber |
| Efficiency 1 | 5µ @ β200 |
| Efficiency 2 | 7µ @ β1000 |
| Outer Diameter | 97.0 mm |
| Inner Diameter | 63.2 mm |
| Length | 320.0 mm |
| Δ Collapse Pressure | 210 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
