MicroFit MFHR56938 Replaces the Pall HC6200FRP8Z

MICROFIT MFHR56938
MICROFIT MFHR56938
Representative product image Product image feedback

MicroFit® UltraGen III MFHR56938 Return Filter | Replaces the Pall HC6200FRP8Z

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR56938 is the MICROFIT® approved replacement to the Pall HC6200FRP8Z. Engineered and manufactured in Great Britain the MFHR56938

Price Match
$165.00
0.9 kg
0.0011 m³
United Kingdom
8421.99.90
0.41 kg
0.0011 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56938 is the MICROFIT® approved replacement to the Pall HC6200FRP8Z. Engineered and manufactured in Great Britain the MFHR56938

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000

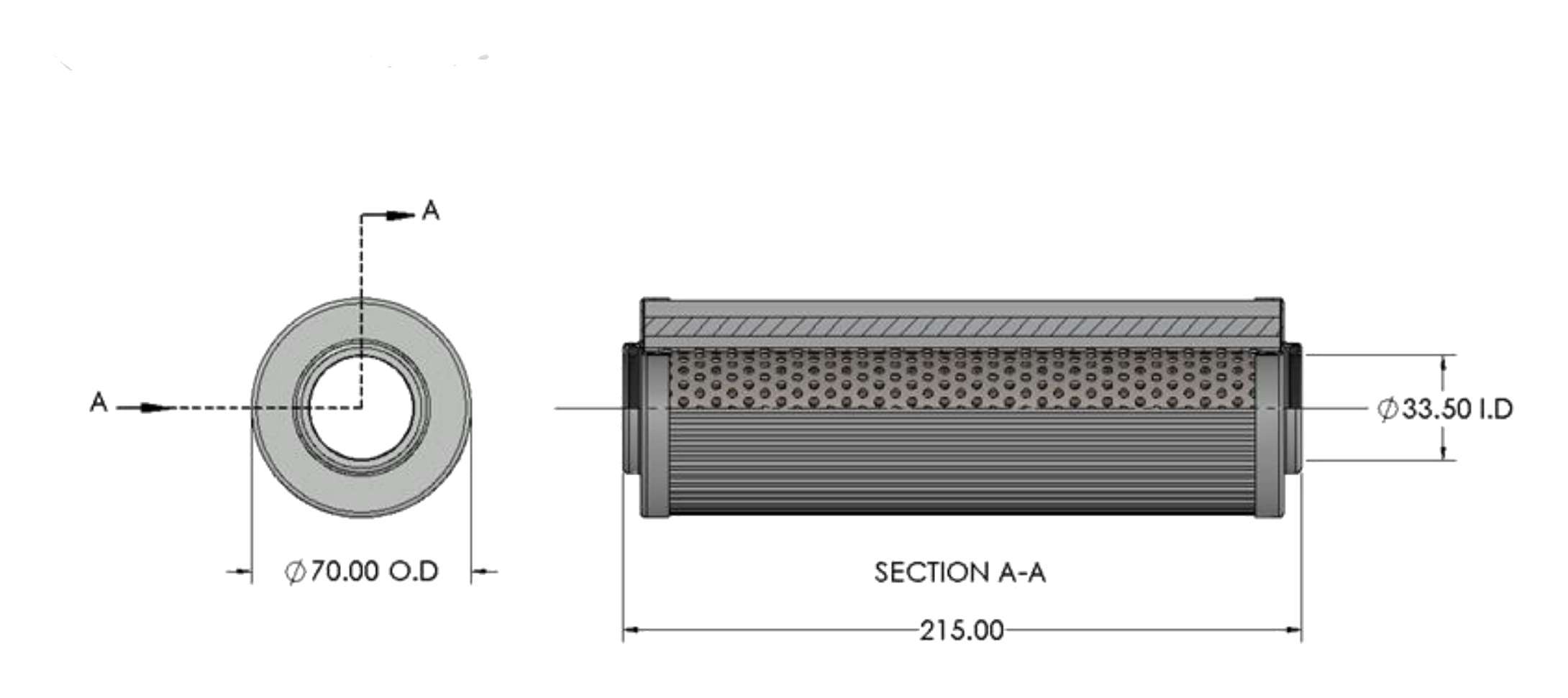

Outer Diameter 70.0 mm
Inner Diameter 33.5 mm
Length 215.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC6200FRP8Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 70.0 mm
Inner Diameter 33.5 mm
Length 215.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Viton
Temperature Range -25 - +120°C
