MicroFit MFHC60159 Replaces the Pall HC8904FRP26Z

MICROFIT MFHC60159
MICROFIT MFHC60159
Representative product image Product image feedback

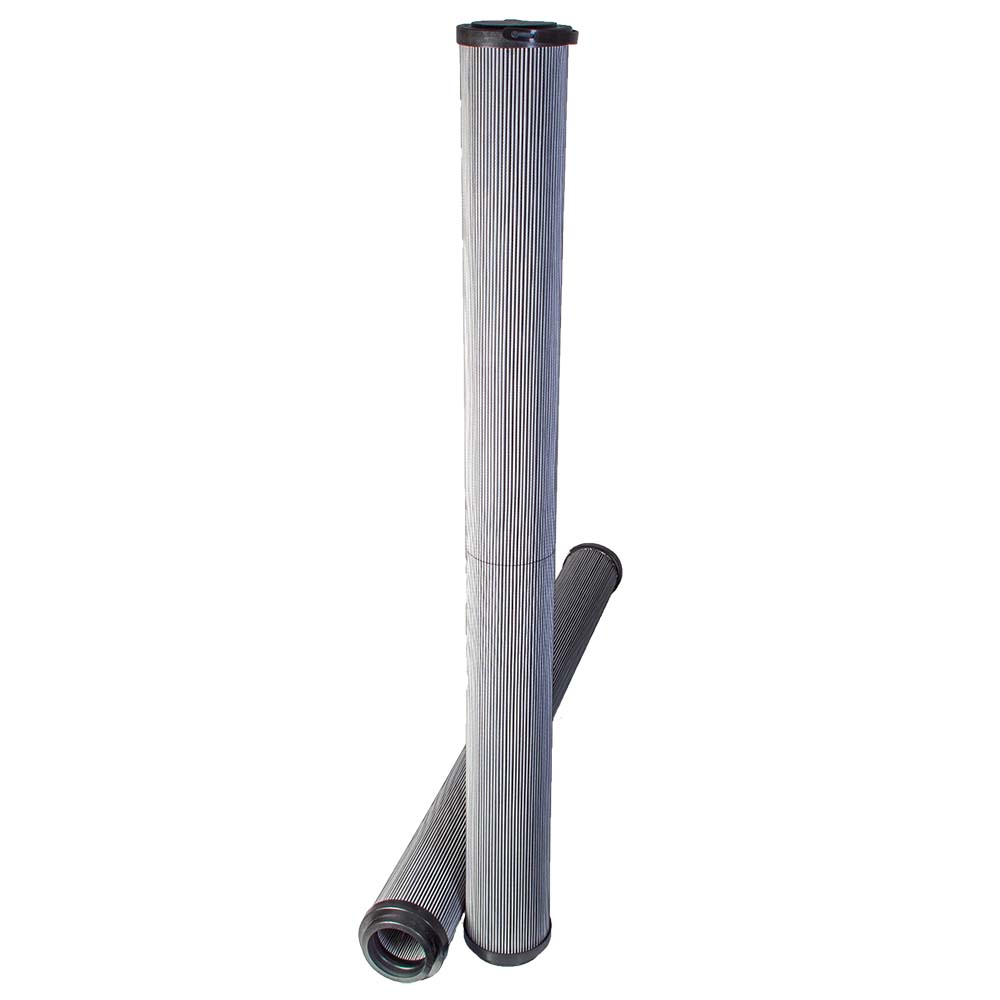

MicroFit® UltraGen III MFHC60159 Coreless Filter | Replaces the Pall HC8904FRP26Z

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHC60159 is the MICROFIT® approved replacement to the Pall HC8904FRP26Z. Engineered and manufactured in Great Britain the MFHC60159

Price Match
$427.00
2.39 kg
0.0061 m³
United Kingdom
8421.99.90
1.09 kg
0.0061 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHC60159 is the MICROFIT® approved replacement to the Pall HC8904FRP26Z. Engineered and manufactured in Great Britain the MFHC60159

Specification

StyleCoreless Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 97.5 mm
Inner Diameter 64.5 mm
Length 639.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall HC8904FRP26Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Coreless Filter
Outer Diameter 97.5 mm
Inner Diameter 64.5 mm
Length 639.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Viton
Temperature Range -25 - +120°C
