Pall HC9800FRZ13Z Replaces the Pall HC9800FKZ13Z

Pall HC9800FRZ13Z
Pall HC9800FRZ13Z
Representative product image Product image feedback

Pall HC9800FRZ13Z | Replaces the Pall HC9800FKZ13Z

Brand: Pall
Description

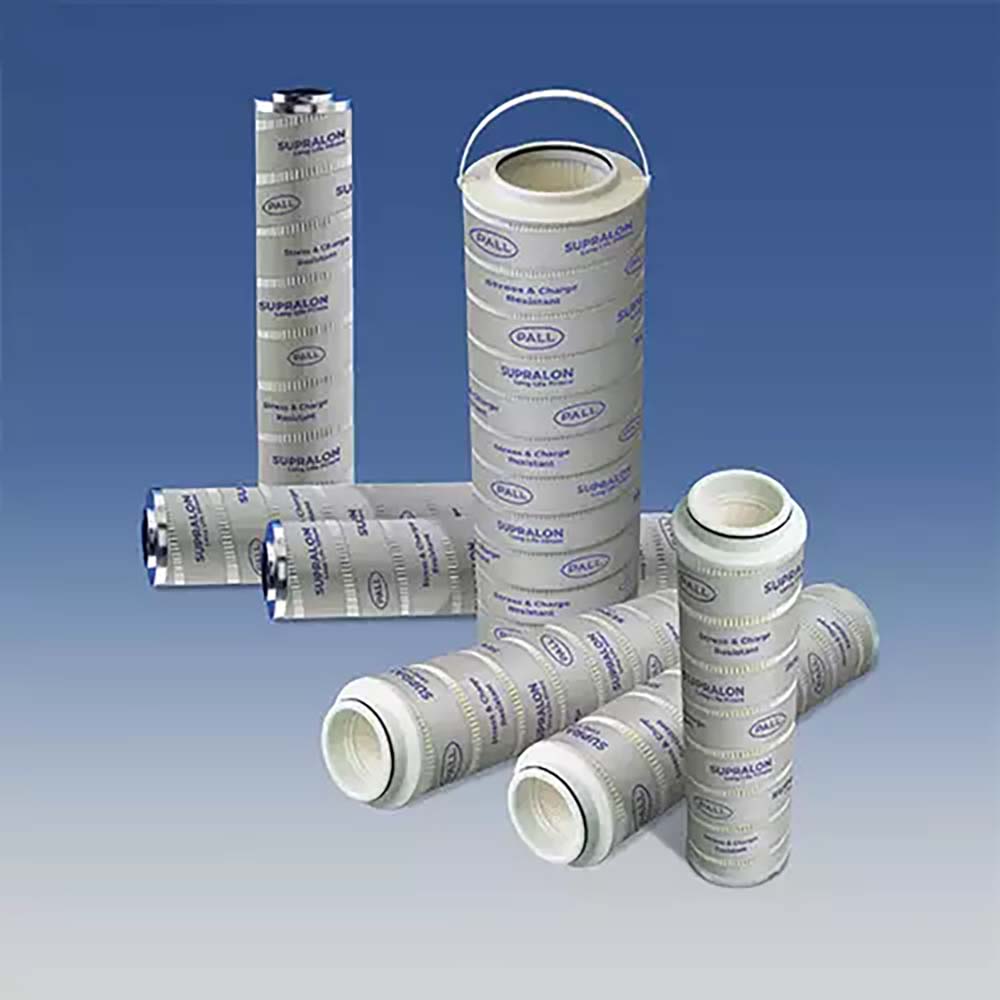

Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 13 inches

Key Features Include:
1) New upstream and downstream drainage mesh pairings.
2) Beta ≥ 2000 rating for superior control of particulate contaminants and faster system cleanup rate.
3) Long filter service life.
4) Sustained system protection over the life of the filter.
5) Protects the fluid, filter, and other components from static discharge.
6) Measuring filter performance - Cyclic Stabilization Test (based on SAE ARP4205)

Price Match
$1,061.00
United States
8421.99.90
0.37 kg
0.0012 m³
United States
8421.29.80.90
0.0008 m³
United Kingdom
8421.99.90
0.0008 m³
Italy
8421.99.90
Shipping Terms

Description

Supralon™ Lube and Hydraulic Elements, Removal Rating 3 μm, GlassFiber, Length 13 inches

Key Features Include:
1) New upstream and downstream drainage mesh pairings.
2) Beta ≥ 2000 rating for superior control of particulate contaminants and faster system cleanup rate.
3) Long filter service life.
4) Sustained system protection over the life of the filter.
5) Protects the fluid, filter, and other components from static discharge.
6) Measuring filter performance - Cyclic Stabilization Test (based on SAE ARP4205)

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 11µ @ β200
Efficiency 24µ @ β1000
Outer Diameter 50.0 mm
Inner Diameter 24.5 mm
Length 329.0 mm
Seal MaterialViton
Temperature Range -25 - +120°C
Pall Brand Logo

Pall Product

Genuine Pall HC9800FRZ13Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
1µ @ β200
Efficiency 2 4µ @ β1000
Style Pressure Filter
Outer Diameter 50.0 mm
Inner Diameter 24.5 mm
Length 329.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -25 - +120°C
