Fleetguard HF35161 Replacement Suction Strainer

Fleetguard HF35161
Fleetguard HF35161
Representative product image Product image feedback

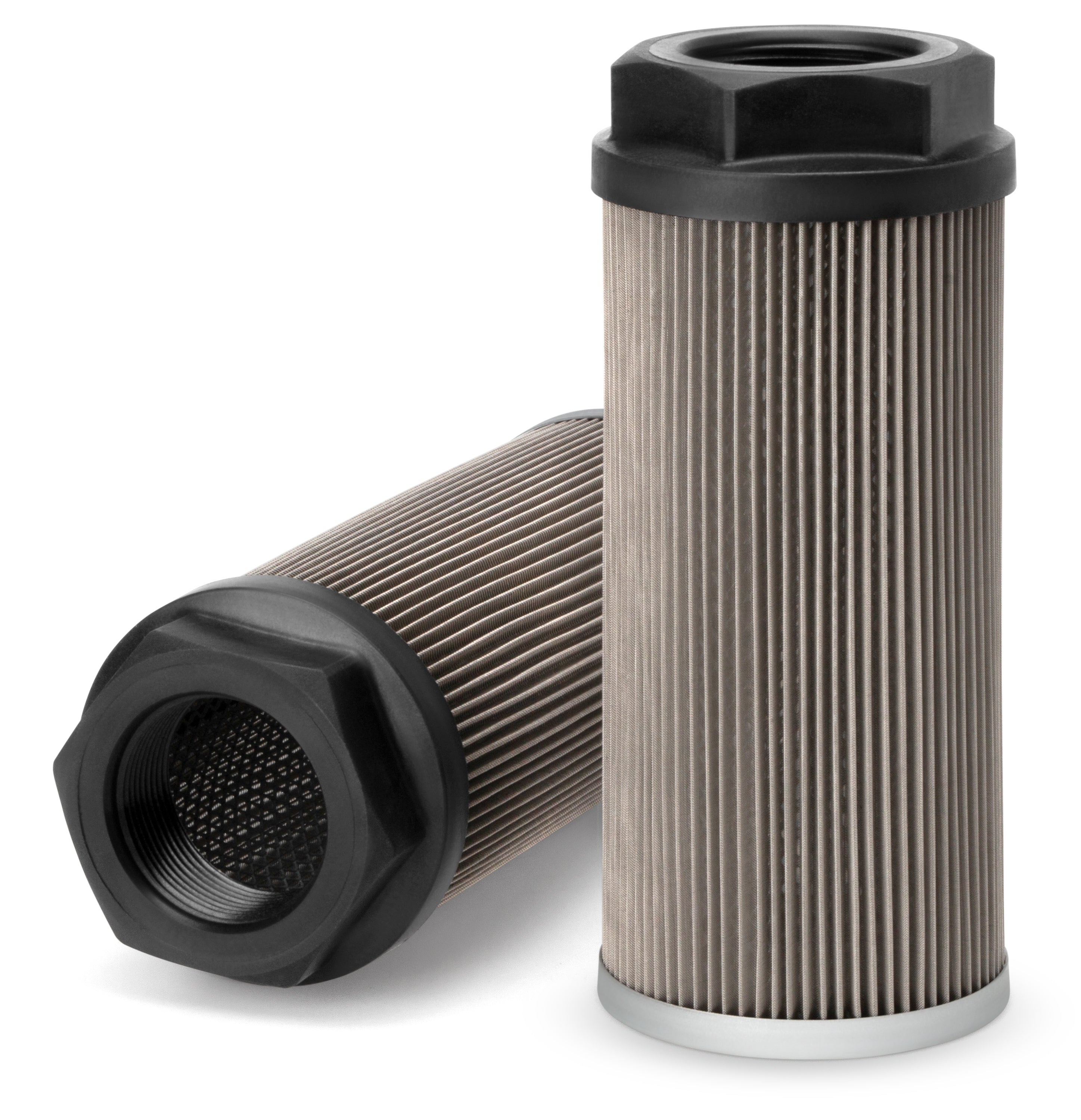

Fleetguard HF35161 Suction Strainer

Brand: Fleetguard
Description

Fleetguard® HF35161 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Price Match
$63.00
0.34 kg
0.0019 m³
275 pcs
United States
8421.99.90
0.5 kg
0.0015 m³
275 pcs
Italy
8421.99.90
0.71 kg
0.0025 m³
275 pcs
Italy
8421.29.80.90
0.44 kg
0.0024 m³
275 pcs
France
8421.99.90
275 pcs
8421.99.90
275 pcs
Germany
8421.99.90
Shipping Terms

Description

Fleetguard® HF35161 hydraulic cartridge filter with wire mesh media is designed to help keep your precision hydraulic systems running as intended, providing a solution for various applications. This filter meets or exceeds the equipment OEM quality and performance and is the first aftermarket replacement available on the market today, bringing your operation top-quality performance and an overall unbeatable total cost of ownership.

Specification

StyleSuction Strainer
MediaWire Mesh
Efficiency 1125µ
Outer Diameter 86.0 mm
Length 200.0 mm
Thread1 1/2" BSP
Δ Collapse Pressure 1 bar
Temperature Range -30 - +100°C
Fleetguard Brand Logo

Fleetguard Product

Genuine Fleetguard HF35161

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Fleetguard Warranty

Fleetguard Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
125µ
Efficiency 2
Style Suction Strainer
Outer Diameter 86.0 mm
Inner Diameter
Length 200.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread 1 1/2" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 1 BAR
Seal
Temperature Range -30 - +100°C
