MicroFit MFHR50884 Replaces the Hy-Pro HP84L393MB

MICROFIT MFHR50884
MICROFIT MFHR50884
Representative product image Product image feedback

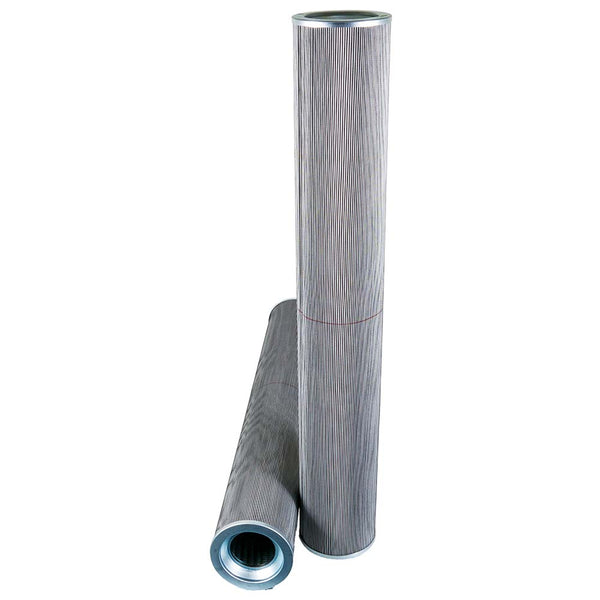

MicroFit® UltraGen III MFHR50884 Return Filter | Replaces the Hy-Pro HP84L393MB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR50884 is the MICROFIT® approved replacement to the Hy-Pro HP84L393MB. Engineered and manufactured in Great Britain the MFHR50884

Price Match
$585.00
19.3 kg
0.0226 m³
United Kingdom
8421.99.90
8.76 kg
0.0226 m³
Italy
8421.99.90
France
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR50884 is the MICROFIT® approved replacement to the Hy-Pro HP84L393MB. Engineered and manufactured in Great Britain the MFHR50884

Specification

StyleReturn Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 152.0 mm
Inner Diameter 83.4 mm
Length 980.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP84L393MB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Return Filter
Outer Diameter 152.0 mm
Inner Diameter 83.4 mm
Length 980.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
