Donaldson P175101 Replaces the Argo-Hytos P3051011

Donaldson P175101
Donaldson P175101
Watch video
▶

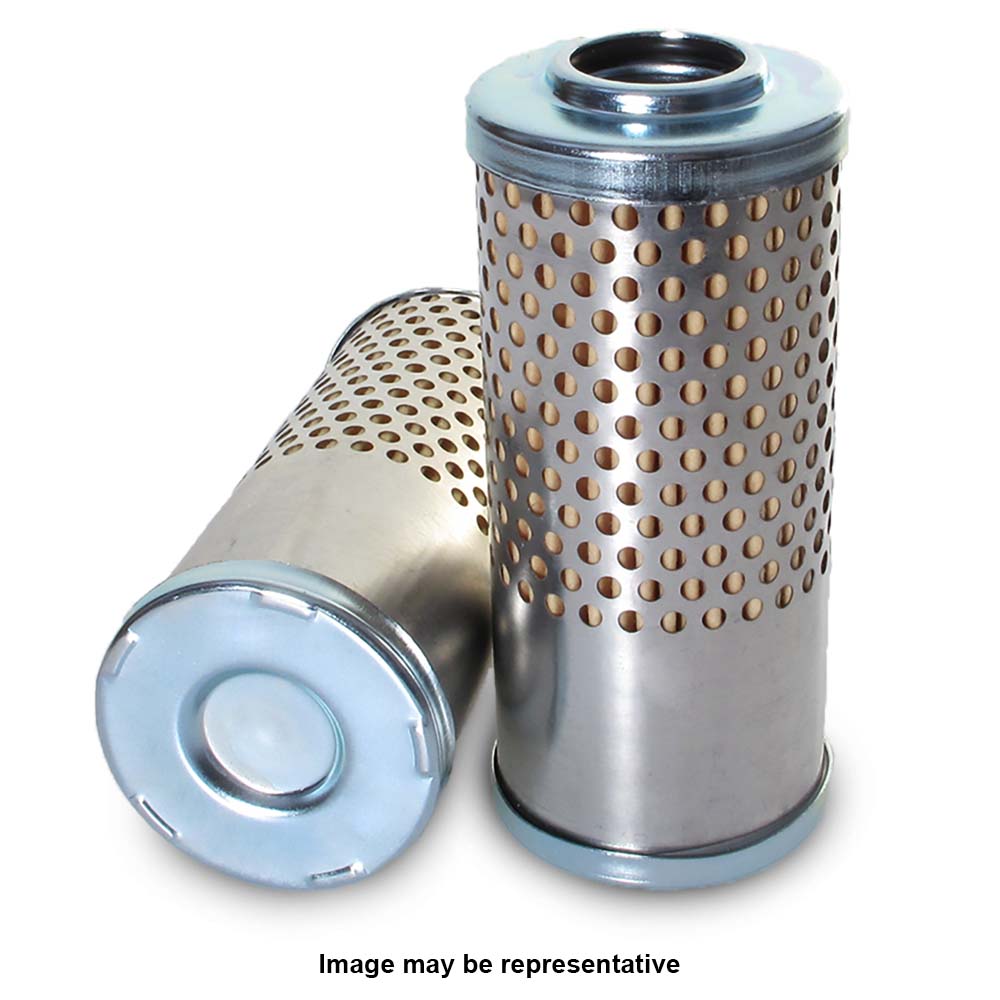

Representative product image Product image feedback

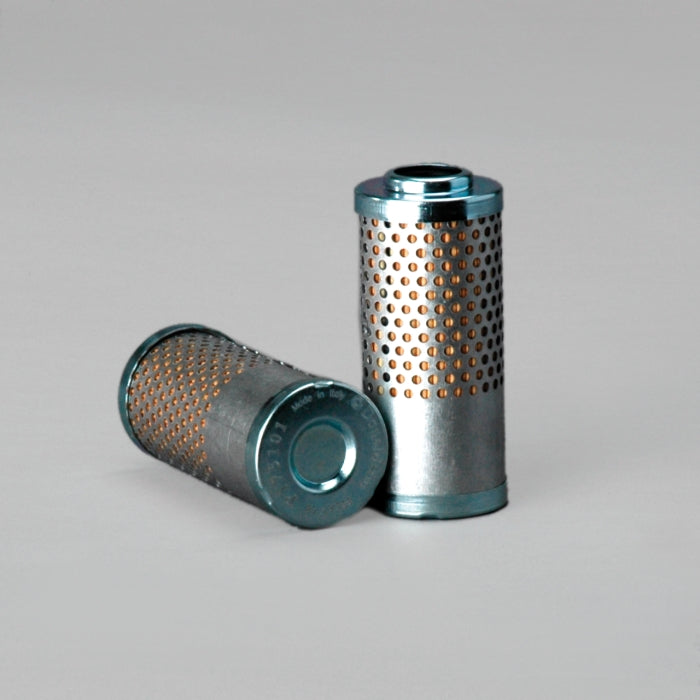

Donaldson P175101 Hydraulic Filter, Cartridge | Replaces the Argo-Hytos P3051011

Brand: Donaldson
Description

Genuine Donaldson P175101 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
$31.00
0.17 kg
0.0003 m³
2880 pcs
Italy
8421.29.80.90
0.14 kg
0.0005 m³
2880 pcs
France
8421.99.90
0.13 kg
0.0002 m³
2880 pcs
Italy
8421.99.90
0.17 kg
0.0003 m³
2880 pcs
Italy
8421.23.00
Shipping Terms

Description

Genuine Donaldson P175101 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StylePressure Filter
MediaCellulose
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 45.5 mm
Inner Diameter 20.5 mm
Length 104.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Argo-Hytos P3051011

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Pressure Filter
Outer Diameter 45.5 mm
Inner Diameter 20.5 mm
Length 104.0 mm
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 10 BAR
Seal Nitrile
Temperature Range -30 - +100°C
