Donaldson P760054 Replacement Hydraulic Cartridge

Donaldson P760054
Donaldson P760054
Watch video
▶
Representative product image Product image feedback

Donaldson P760054 Hydraulic Cartridge

Brand: Donaldson
Description

Genuine Donaldson P760054 Hydraulic Cartridge offers superior filtration performance, effectively removing contaminants from hydraulic fluids. Its high-capacity design helps maintain fluid cleanliness and system efficiency.

Constructed from durable materials, this hydraulic cartridge is suitable for a wide range of industrial and heavy-duty hydraulic systems.

$0.00
Price
United States
8421.29.00
Shipping Terms

Description

Genuine Donaldson P760054 Hydraulic Cartridge offers superior filtration performance, effectively removing contaminants from hydraulic fluids. Its high-capacity design helps maintain fluid cleanliness and system efficiency.

Constructed from durable materials, this hydraulic cartridge is suitable for a wide range of industrial and heavy-duty hydraulic systems.

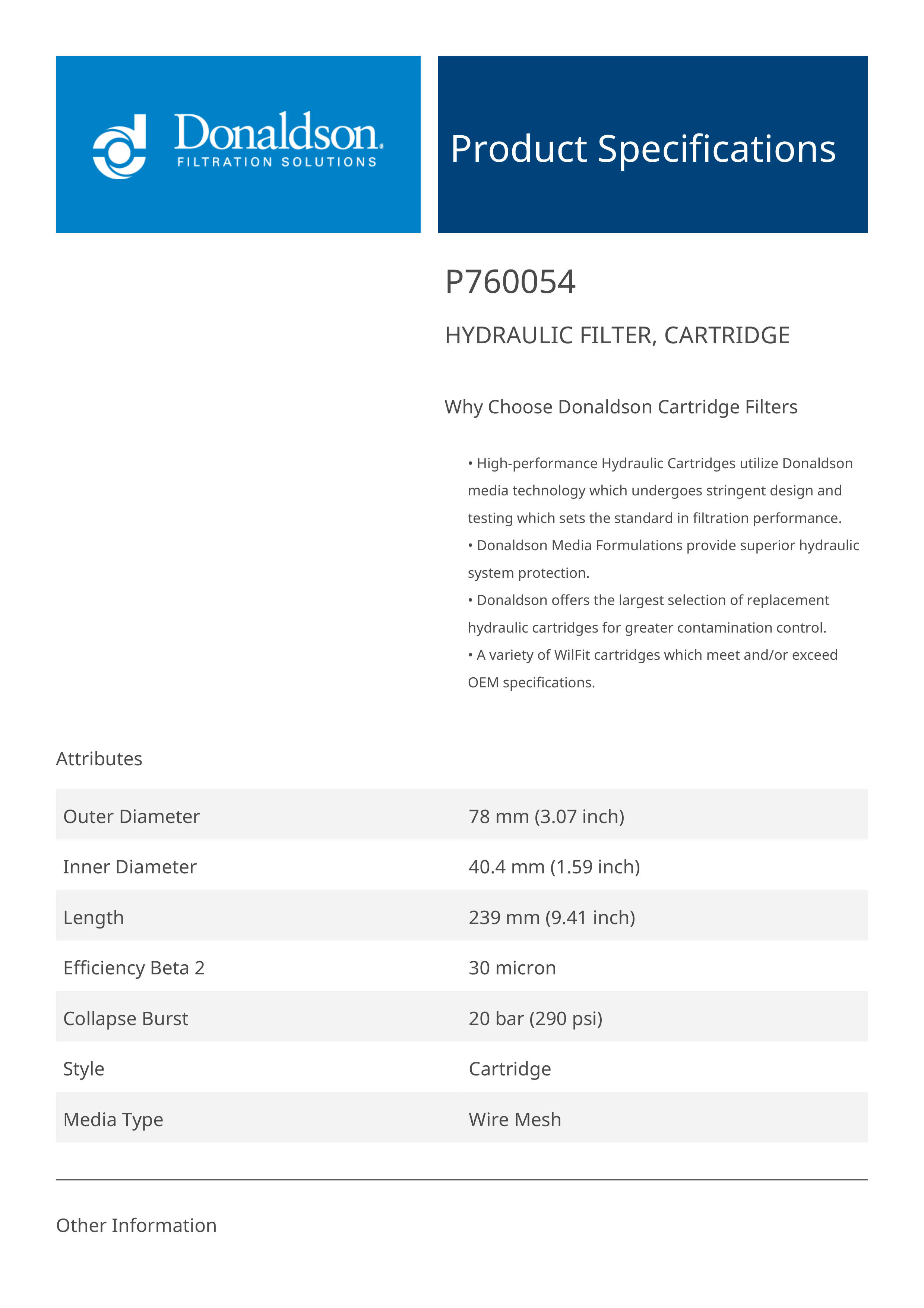

Specification

StyleHydraulic Cartridge
MediaWire Mesh
Efficiency 130µ @ β2
Outer Diameter 78.0 mm
Inner Diameter 40.4 mm
Length 239.0 mm
Donaldson Brand Logo

Donaldson Product

Genuine Donaldson P760054

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
30µ @ β2
Efficiency 2
Style Hydraulic Cartridge
Outer Diameter 78.0 mm
Inner Diameter 40.4 mm
Length 239.0 mm
Media Type Wire Mesh
Flow Direction
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal
Temperature Range
