Summary

MicroFit MFHHP41009 Replaces the Schroeder SBF980113Z5V

SBF980113Z5V
SBF980113Z5V

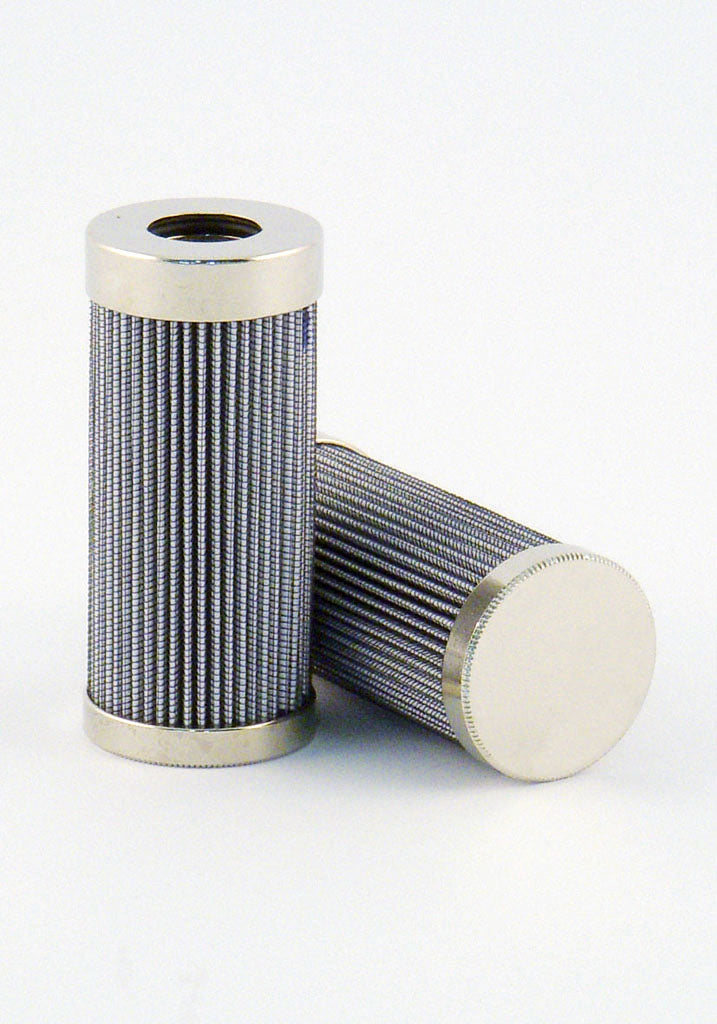

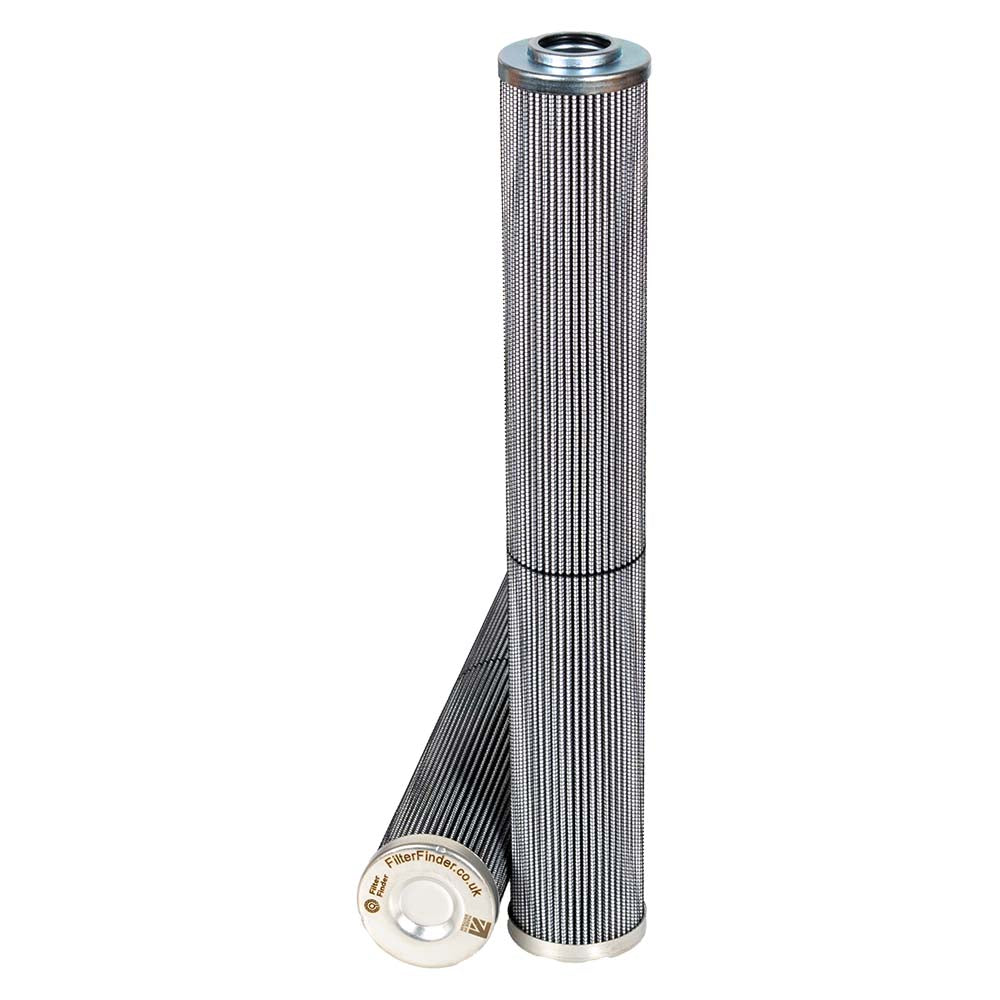

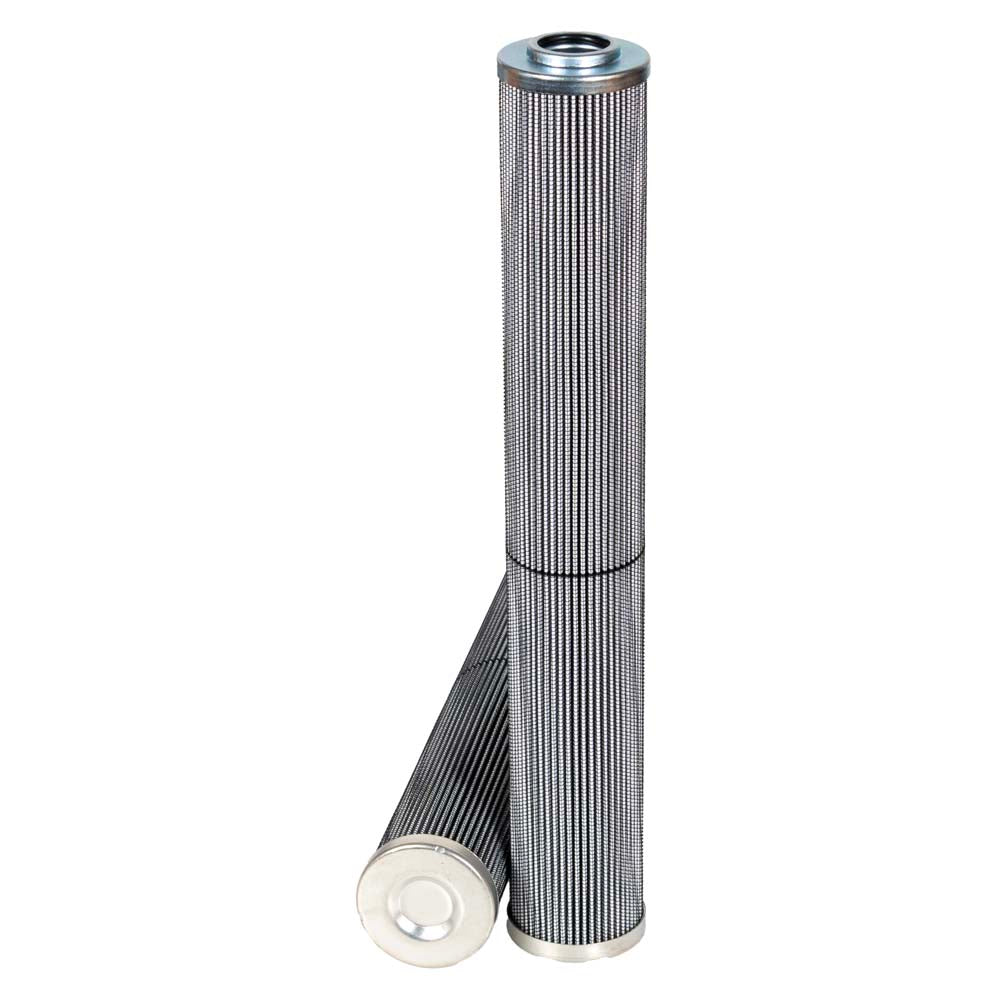

Representative product image Product image feedback

MicroFit® UltraGen III MFHHP41009 Pressure Filter | Replaces the Schroeder SBF980113Z5V

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHHP41009 is the MICROFIT® approved replacement to the Schroeder SBF980113Z5V. Engineered and manufactured in Great Britain the MFHHP41009

Price Match
$420.00
1.87 kg
0.0009 m³
United Kingdom
8421.99.90
0.85 kg
0.0009 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHHP41009 is the MICROFIT® approved replacement to the Schroeder SBF980113Z5V. Engineered and manufactured in Great Britain the MFHHP41009

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 15µ @ β200
Efficiency 27µ @ β1000
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 330.0 mm
Δ Collapse Pressure 210 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Schroeder Brand Logo

Same Fit-Form & Function

As the Genuine Schroeder SBF980113Z5V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β200
Efficiency 2 7µ @ β1000
Style Pressure Filter
Outer Diameter 51.0 mm
Inner Diameter 23.8 mm
Length 330.0 mm
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 210 BAR
Seal Viton
Temperature Range -25 - +120°C
