Stauff SE-070-B-40-B/2 Replacement Pressure Filter

Stauff SE-070-B-40-B/2
Stauff SE-070-B-40-B/2

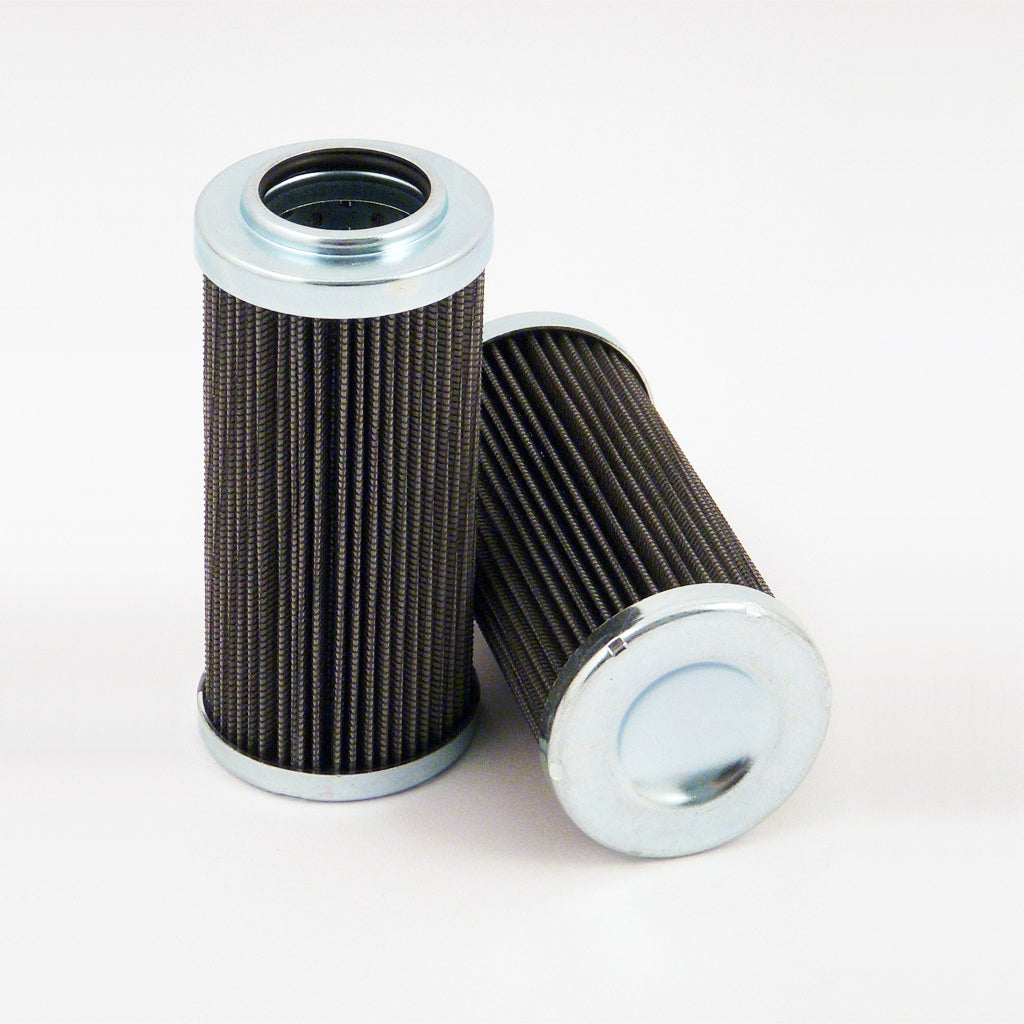

Representative product image Product image feedback

Stauff SE-070-B-40-B/2 Pressure Filter

Brand: Stauff
Description

Pressure Filter Element Stainless Mesh 30 bar 40 µm

Price Match
$339.00
Germany
8421.99.90
0.97 kg
United Kingdom
8421.99.90
0.44 kg
0.0007 m³
Italy
8421.99.90
Shipping Terms

Description

Pressure Filter Element Stainless Mesh 30 bar 40 µm

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 150µ
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 186.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SE-070-B-40-B/2

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
50µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 186.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
