MicroFit MFHLP31575 Replaces the Stauff SE125B100B4

SE125B100B4
SE125B100B4
Representative product image Product image feedback

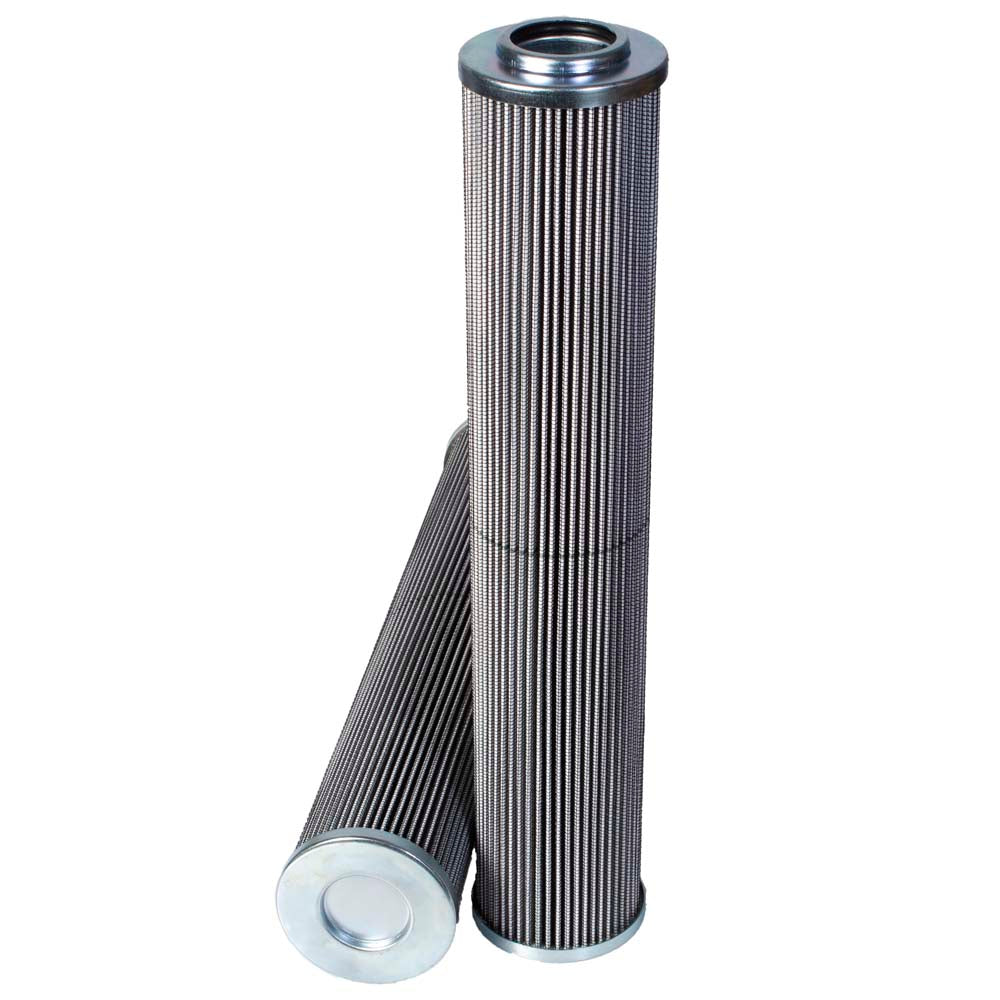

MicroFit® UltraGen III MFHLP31575 Pressure Filter | Replaces the Stauff SE125B100B4

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31575 is the MICROFIT® approved replacement to the Stauff SE125B100B4. Engineered and manufactured in Great Britain the MFHLP31575

Price Match
$161.00
2.01 kg
0.0013 m³
United Kingdom
8421.99.90
0.91 kg
0.0013 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31575 is the MICROFIT® approved replacement to the Stauff SE125B100B4. Engineered and manufactured in Great Britain the MFHLP31575

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 1100µ
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 369.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Same Fit-Form & Function

As the Genuine Stauff SE125B100B4

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
100µ
Efficiency 2
Style Pressure Filter
Outer Diameter 60.0 mm
Inner Diameter 34.2 mm
Length 369.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Nitrile
Temperature Range -30 - +100°C
