MicroFit MFHLP31573 Replaces the Stauff SE125S50V

SE125S50V
SE125S50V
Representative product image Product image feedback

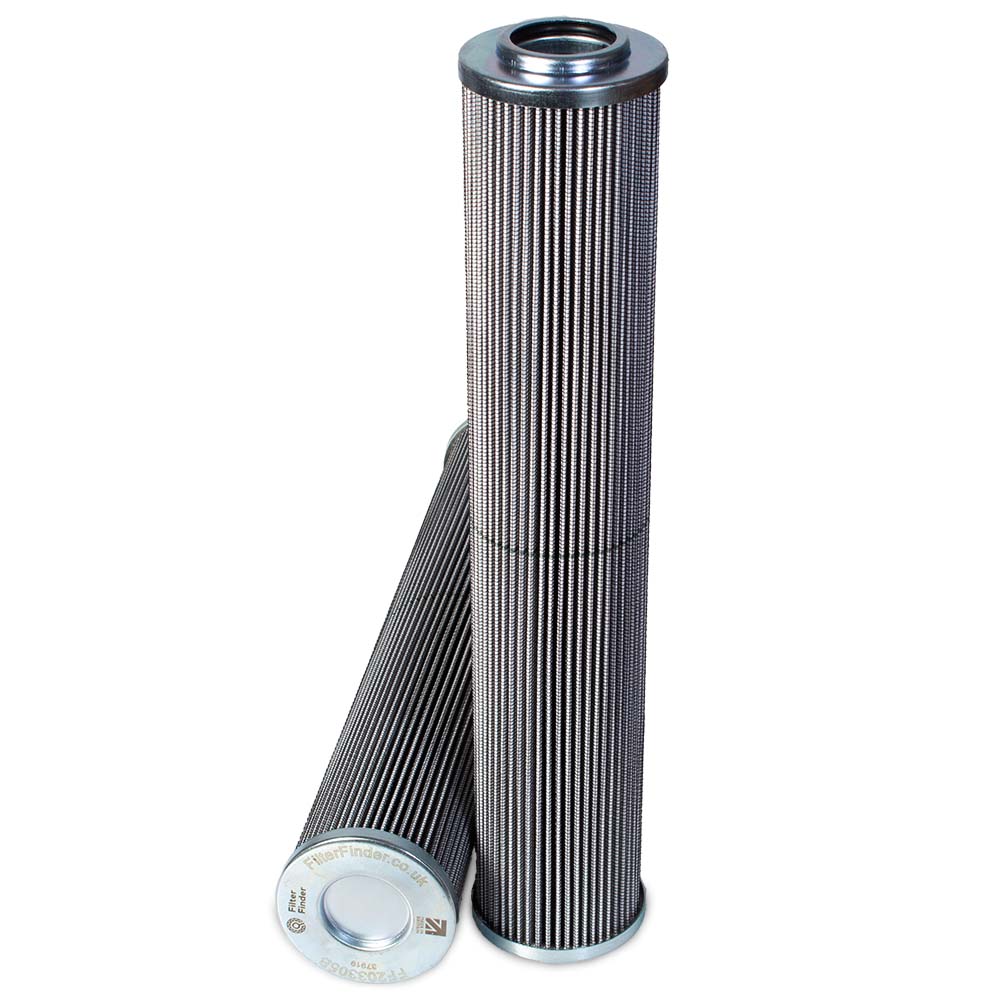

MicroFit® UltraGen III MFHLP31573 Pressure Filter | Replaces the Stauff SE125S50V

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31573 is the MICROFIT® approved replacement to the Stauff SE125S50V. Engineered and manufactured in Great Britain the MFHLP31573

Price Match
$299.00
2.55 kg
United Kingdom
8421.99.90
1.16 kg
0.0017 m³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31573 is the MICROFIT® approved replacement to the Stauff SE125S50V. Engineered and manufactured in Great Britain the MFHLP31573

Specification

StylePressure Filter
MediaWire Mesh
Efficiency 150µ
Outer Diameter 69.0 mm
Inner Diameter 34.2 mm
Length 355.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Stauff Brand Logo

Same Fit-Form & Function

As the Genuine Stauff SE125S50V

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
50µ
Efficiency 2
Style Pressure Filter
Outer Diameter 69.0 mm
Inner Diameter 34.2 mm
Length 355.0 mm
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 20 BAR
Seal Viton
Temperature Range -25 - +120°C
