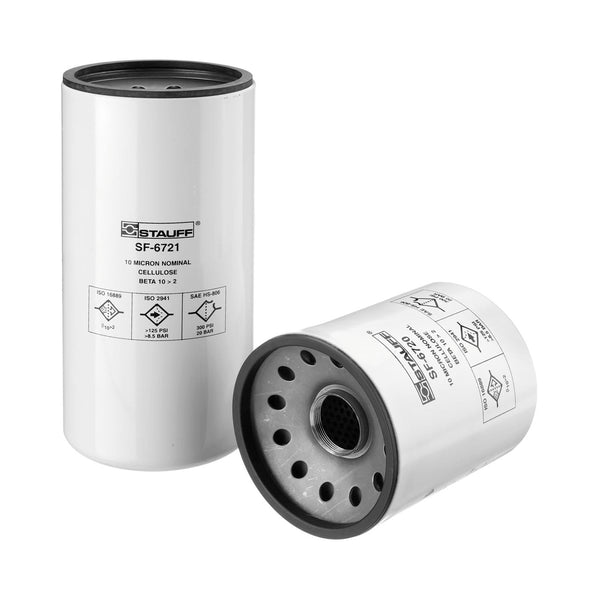

Stauff SF-6721-W Replacement Spin-On Filter

Stauff SF-6721-W
Stauff SF-6721-W
Representative product image Product image feedback

Stauff SF-6721-W Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 10 µm Water-Absorbing Paper-Glassfibre laminate Outer Diameter (mm): 128 Length (mm): 270 Sealing: NBR, β ratio >2

Price Match
$132.00
192 pcs
Germany
8421.99.90
1.47 kg
0.0054 m³
192 pcs
United States
8421.29.80.90
1.66 kg
0.0069 m³
192 pcs
France
8421.99.90
1.54 kg
0.0044 m³
192 pcs
Italy
8421.99.90
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 10 µm Water-Absorbing Paper-Glassfibre laminate Outer Diameter (mm): 128 Length (mm): 270 Sealing: NBR, β ratio >2

Specification

StyleSpin-On Filter
MediaCellulose + Water Removal
Efficiency 110µ @ β200
Efficiency 212µ @ β1000
Outer Diameter 128.0 mm
Length 266.0 mm
Thread1 1/2"-16 UN
Δ Collapse Pressure 14 bar
Seal MaterialNitrile
Temperature Range +5 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SF-6721-W

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
10µ @ β200
Efficiency 2 12µ @ β1000
Style Spin-On Filter
Outer Diameter 128.0 mm
Inner Diameter
Length 266.0 mm
Media Type Cellulose + Water Removal
Flow Direction
Thread 1 1/2"-16 UN
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 14 BAR
Seal Nitrile
Temperature Range +5 - +100°C
