Summary

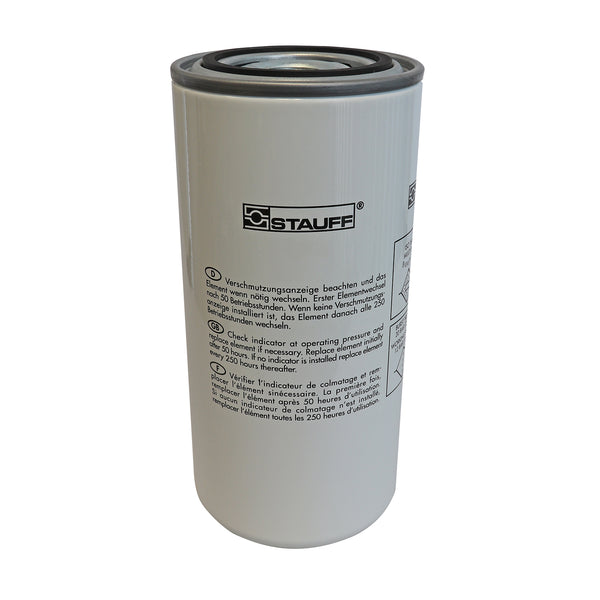

Stauff SFC-3625-AE Replacement Spin-On Filter

Stauff SFC-3625-AE
Stauff SFC-3625-AE
Representative product image Product image feedback

Stauff SFC-3625-AE Spin-On Filter

Brand: Stauff
Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 25 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 98 Length (mm): 190 Sealing: NBR, β ratio >200

Price Match
$120.00
275 pcs
Germany
8421.99.90
1.17 kg
0.0025 m³
275 pcs
Italy
8421.29.80.90
0.91 kg
0.002 m³
275 pcs
Italy
8421.99.90
0.9 kg
0.002 m³
275 pcs
France
8421.99.90
Shipping Terms

Description

Replacement Filter Element Spin-On Filter Cartridge Micron Rating: 25 µm Material: Inorg. Glass Fibre Outer Diameter (mm): 98 Length (mm): 190 Sealing: NBR, β ratio >200

Specification

StyleSpin-On Filter
MediaGlass Fiber
Efficiency 120µ @ β200
Efficiency 222µ @ β1000
Outer Diameter 96.0 mm
Length 213.0 mm
Thread3/4" BSP
Δ Collapse Pressure 12 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Stauff Brand Logo

Stauff Product

Genuine Stauff SFC-3625-AE

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
20µ @ β200
Efficiency 2 22µ @ β1000
Style Spin-On Filter
Outer Diameter 96.0 mm
Inner Diameter
Length 213.0 mm
Media Type Glass Fiber
Flow Direction
Thread 3/4" BSP
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 12 BAR
Seal Nitrile
Temperature Range -30 - +100°C
