Donaldson P562229 Replaces the OMT SP86A114NR125V
Donaldson P562229 Hydraulic Filter, Strainer | Replaces the OMT SP86A114NR125V
P562229
Donaldson
OMT SP86A114NR125V
Donaldson
OMT SP86A114NR125V
Brand:
Donaldson
Description

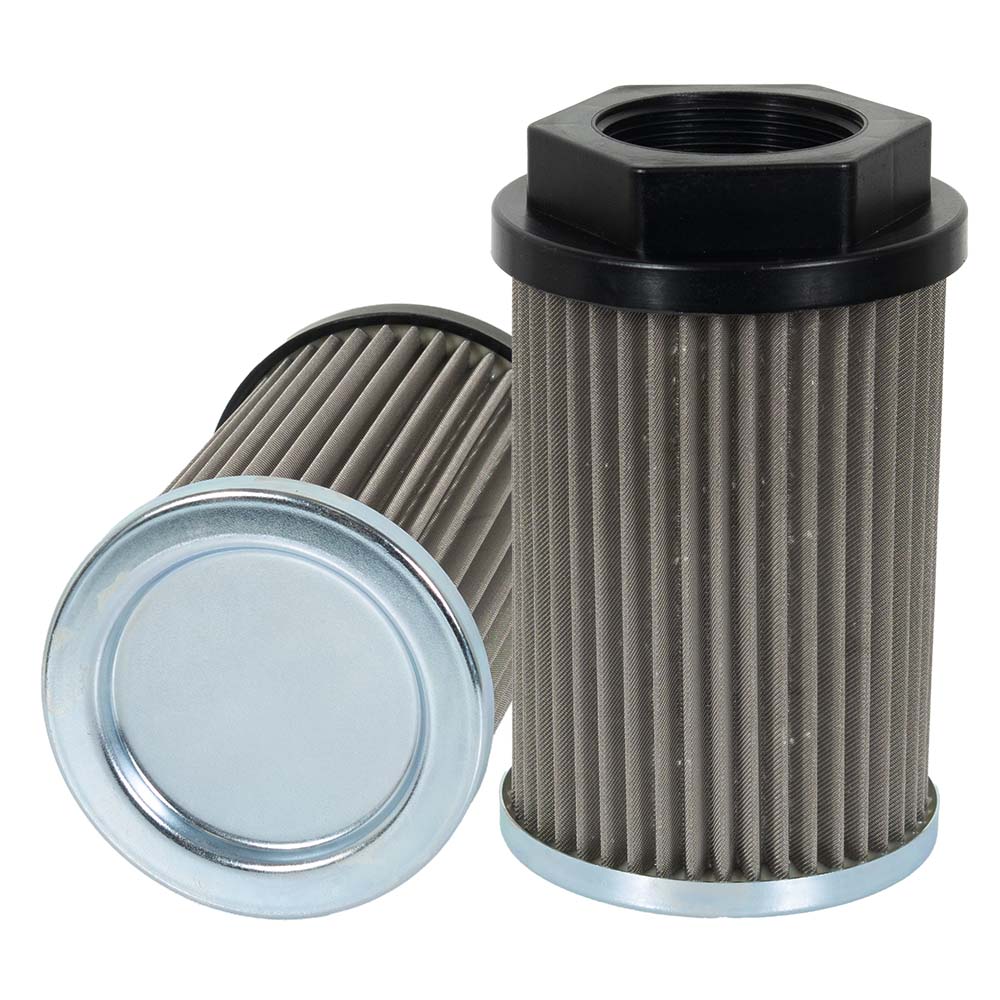

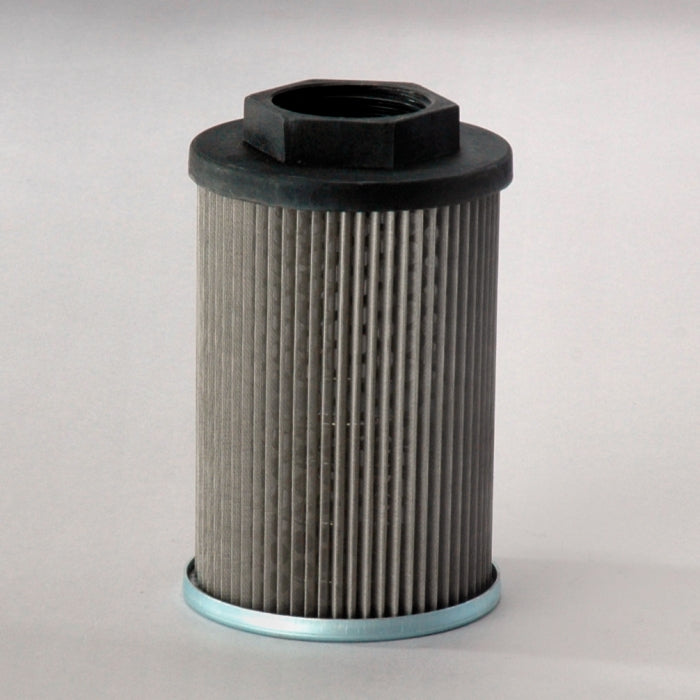

Genuine Donaldson P562229 Hydraulic Filter, Strainer is designed to capture larger contaminants before they enter the hydraulic system, protecting sensitive components from damage. Its coarse filtration capability helps extend the life of downstream filters and improves overall system performance.
Ideal for low-pressure applications, this strainer offers durable construction and easy installation. It’s a cost-effective solution for maintaining hydraulic fluid cleanliness and preventing clogging in pumps and valves.
Regular price
$45.00
Unit price
per
0.29 kg
0.0015 m³
72 pcs
United States
8421.29.80.90
0.35 kg
0.001 m³
72 pcs
Italy
8421.99.90
Description
Genuine Donaldson P562229 Hydraulic Filter, Strainer is designed to capture larger contaminants before they enter the hydraulic system, protecting sensitive components from damage. Its coarse filtration capability helps extend the life of downstream filters and improves overall system performance.Ideal for low-pressure applications, this strainer offers durable construction and easy installation. It’s a cost-effective solution for maintaining hydraulic fluid cleanliness and preventing clogging in pumps and valves.
Specification
| Style | Suction Strainer |
| Media | Wire Mesh |
| Efficiency 1 | 125µ |
| Outer Diameter | 86.0 mm |
| Length | 139.0 mm |
| Thread | 1 1/4" NPT |
| Bypass Pressure | 0.3 BAR bar |
| Δ Collapse Pressure | 1 bar |
| Temperature Range | -30 - +100°C |
Same Fit-Form & Function
As the Genuine OMT SP86A114NR125V
Inspected to ISO 9001:2015
