Summary

MicroFit MFHSU70179 Replaces the Pall UE310AZ08Z

MICROFIT MFHSU70179
MICROFIT MFHSU70179

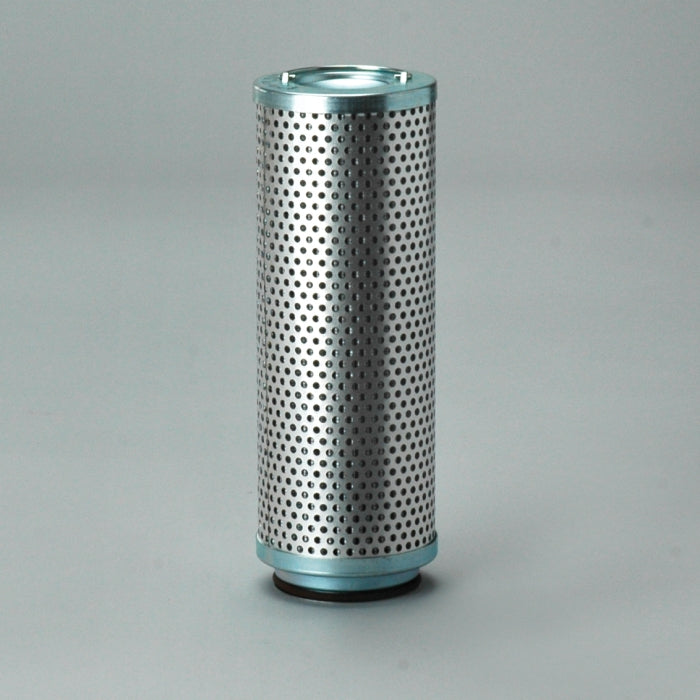

Representative product image Product image feedback

MicroFit® UltraGen III MFHSU70179 Suction Filter | Replaces the Pall UE310AZ08Z

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHSU70179 is the MICROFIT® approved replacement to the Pall UE310AZ08Z. Engineered and manufactured in Great Britain the MFHSU70179

Price Match
$226.00
0.86 kg
0.0015 m³
352 pcs
United Kingdom
8421.99.90
0.46 kg
0.0024 m³
352 pcs
United States
8421.29.80.90
0.4 kg
0.0015 m³
352 pcs
Italy
8421.99.90
352 pcs
United States
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHSU70179 is the MICROFIT® approved replacement to the Pall UE310AZ08Z. Engineered and manufactured in Great Britain the MFHSU70179

Specification

StyleSuction Filter
MediaGlass Fiber (Anti-Static)
Efficiency 11µ @ β200
Efficiency 24µ @ β1000
Outer Diameter 79.0 mm
Inner Diameter 63.5 mm
Length 232.5 mm
Seal MaterialViton
Temperature Range -25 - +120°C
Pall Brand Logo

Same Fit-Form & Function

As the Genuine Pall UE310AZ08Z

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
1µ @ β200
Efficiency 2 4µ @ β1000
Style Suction Filter
Outer Diameter 79.0 mm
Inner Diameter 63.5 mm
Length 232.5 mm
Media Type Glass Fiber (Anti-Static)
Flow Direction IN-OUT
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure
Seal Viton
Temperature Range -25 - +120°C
